UR8HC007-0A4

Features: • Typically consumes less than 1A• Scans an 8 x 16 keyboard matrix that supports Japanese, English and European keyboards• Interfaces any four-wire or eightwire resistive touch screen• Operates continuously between 3 Volts and 5 Volts• Offers unique power ma...

product image

UR8HC007-0A4 Picture
See larger image
SeekIC No. : 004538517 Detail

UR8HC007-0A4: Features: • Typically consumes less than 1A• Scans an 8 x 16 keyboard matrix that supports Japanese, English and European keyboards• Interfaces any four-wire or eightwire resistive...

UR8HC007-0A4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UR8HC007-0A4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Typically consumes less than 1A
• Scans an 8 x 16 keyboard matrix that supports Japanese, English and European keyboards
• Interfaces any four-wire or eightwire resistive touch screen
• Operates continuously between 3 Volts and 5 Volts
• Offers unique power management capabilities that work in harmony with Windows® CE power modes
• Always runs in "Stop" mode without data or event loss
• Provides a direct Zero-PowerTM PS/2 port for the hot-plug connection of an external keyboard or mouse
• Uses proprietary circuitry, so "Stop" mode is entered even when PS/2 device is connected & active
• GPIO pins provide interrupt at both falling and rising edge of signals, ideal for lid functions, power, ring indicators, docking signals, battery measurement, etc.
• Has additional GPIO available for LEDs, switches, etc.
• Offers internal control of LCD brightness/contrast, audio, etc. as well as four 10-bit A/D channels for power management monitoring
• Provides programmable features that allow for maximum design differentiation without customization
• Cost-effective, reducing overall system costs by integrating features that would typically require multiple components
• Available in 80-pin 13 x 13 mm, 1.7mm high package to accommodate slim designs


Application

• Jupiter-class devices
• Professional H/PCs
• H/PCs
• Web Phones, G3 Terminals


Pinout

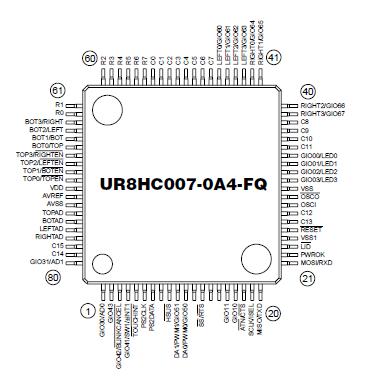

Connection Diagram


Specifications

Ratings
Symbol
Value
Unit
Supply Voltage
Vdd
-0.3 to 7.0
V
All pins except 2-9
Vin
-0.3 to Vdd +0.3
V
Pins 2-9
(PS/2 ports XXXDAT, XXXCLK,
GIO16/SW16, GIO17/SW17)
VIN
-0.3 to +5.8
V
Operating Temperature
UR7HCTS2-S840
Ta
T low to T high
-20 to +85
° C
° C
Storage Temperature Range
Tstg
-40 to +250
° C



Description

The JunoTM A4 UR8HC007-0A4 is a member of a series of input device and power management companion ICs for RISC-based portable systems. On a single IC, the JunoTM A4 UR8HC007-0A4 integrates control of any 4-wire or 8-wire resistive touch screen, keyboard scanning, unique power management capabilities, a direct PS/2 port and plenty of General Purpose Input / Output (GPIO).

The JunoTM A4 UR8HC007-0A4 provides continuous operation between 3V and 5V and scans a fully programmable 8 X 16 keyboard matrix. The IC is equipped with a direct Zero-PowerTM PS/2 port for the hot-plug connection of an external PS/2 keyboard or mouse.

The Zero-PowerTM JunoTM A4 UR8HC007-0A4 will power down even between key presses. Proprietary circuitry (patent pending) allows the IC to power down even when the PS/2 device is connected and active.

Typical power consumption is less than 1 A, a first for embedded ICs. The JunoTM A4 UR8HC007-0A4 is equipped with a proprietary protocol developed specifically for RISC-based handheld machines. It interfaces the system via either asynchronous serial (UART) or the Serial Peripheral Interface (SPI).

The integration of features, many of them programmable, on one IC UR8HC007-0A4 increases flexibility and reduces component count and cost.
