Features:

• Typically consumes less than 1A
• Scans an 8 x 16 keyboard matrix that supports Japanese, English and European keyboards
• Interfaces any four- or eight-wire resistive touch screen
• Operates continuously between 3 Volts and 5 Volts
• Offers unique power management capabilities that work in harmony with Windows® CE power modes
• Always runs in "Stop" mode without data or event loss
• GPIO pins provide interrupt at both falling and rising edge of signals, ideal for lid functions, power, ring indicators, docking signals, battery measurement, etc.
• Has additional GPIO available for LEDs, switches, etc.
• Offers internal control of LCD brightness/contrast, audio, etc. as well as four 10-bit A/D channels for power management monitoring
• Provides programmable features that allow for maximum design differentiation without customization
• Cost-effective, reducing overall system costs by integrating features that would typically require multiple components
• Available in 80-pin 13 x 13 mm, 1.7mm high package to accommodate slim designs


Application

• Jupiter-class devices
• Professional H/PCs
• H/PCs
• Web Phones, G3 Terminals


Pinout

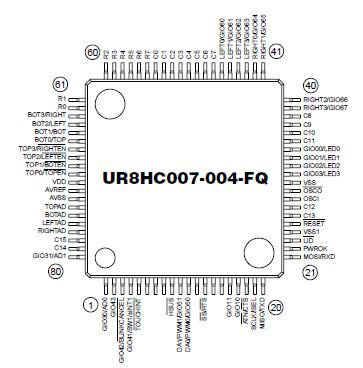

Connection Diagram


Specifications

Ratings
Symbol
Value
Unit
Supply Voltage
Vdd
-0.3 to 7.0
V
All pins except 2-9
Vin
-0.3 to Vdd +0.3
V
Pins 2-9
(PS/2 ports XXXDAT, XXXCLK,
GIO16/SW16, GIO17/SW17)
VIN
-0.3 to +5.8
V
Operating Temperature
UR7HCTS2-S840
Ta
T low to T high
-20 to +85
° C
° C
Storage Temperature Range
Tstg
-40 to +250
° C



Description

The JunoTM 04 UR8HC007-004 is a member of a series of input device and power management companion ICs for RISC-based portable systems. On a single IC, the JunoTM 04 UR8HC007-004 integrates control of any 4-wire or 8-wire resistive touch screen, keyboard scanning, unique powe management capabilities, and plenty of General Purpose Input / Output (GPIO).

The JunoTM 04 UR8HC007-004 provides continuous operation between 3 and 5V and scans a fully programmable 8 X 16 keyboard matrix.The Zero-PowerTM JunoTM 04 UR8HC007-004 will power down even between key presses. Typical power consumption is less than 1 A, a first for embedded ICs.

The JunoTM 04 UR8HC007-004 is equipped with Semtech's proprietary protocol developed specifically for RISCbased handheld machines. It interfaces the system via either Asynchronous Serial (UART) or the Serial Peripheral Interface (SPI).

The integration of features, many of them programmable, on one IC UR8HC007-004 increases flexibility and reduces component count and cost.
