Features:

• Controller & digitizer in a single IC
• Interfaces the system via USB
• Works with ANY 4- or 8-wire esistive touch screen regardless f size, material or vendor
• Provides high resolution - 1000 oints per axis, enabling IC to ake precise drawing and ignature captures
• Accurate, quick touch response ue to Semtech's advanced ampling technology and lgorithms
• Highly resistant to RF and other oise
• No digitizer or external A/D ecessary
• Fully compliant with USB HID pecifications; works with native SB drivers including Windows® 8, Me and 2000
• Convienent calibration applet ffered free of charge
• Uses slim 36-pin, SSOP package
• Customized versions available


Application

• Handhelds/Notebooks
• Portable Devices
• Interactive Kiosks
• Industrial/Custom Touch Screens


Pinout

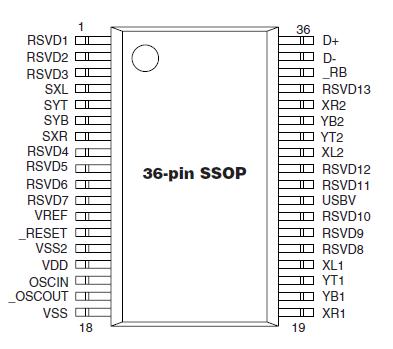

Connection Diagram


Specifications

Ratings
Symbol
Value
Unit
Supply Voltage
Vdd
-0.3 to 7.0
V
Input Voltage
All input pins
Vin
Vss -0.3 to Vdd +0.3
V
Current Drain per Pin
(not including Vss or Vdd)
I
20
mA
Operating Temperature
UR7HCTS2-U860
Ta
T low to T high
-20 to +85
° C
° C
Storage Temperature Range
Tstg
-40 to +250
° C



Description

The ScreenCoderTM USB IC UR7HCTS2-U860 is the irst single IC that seamlessly nterfaces ANY 4- or 8-wire\ sistive touch screen to a USBequipped ystem. It is also the irst touch screen controller IC on he market designed to ccommodate a very wide range of ize, capacitance and resistance of - or 8-wire touch screens, roviding a universal performance
solution among different OEMproducts and touch screenvendors. This unique feature of theIC UR7HCTS2-U860 provides OEMs with a wide ariety of interchangeable touchscreen options.

Unlike digitizers, the creenCoderTM USB UR7HCTS2-U860 integrates adigitizer with a controller thatperforms all touch detection, noisefiltering, error elimination andprovides the host with processedand stable positioning data overUSB. Semtech's unique motionalgorithms provide high resistanceto RF and other noise sourcesresulting in precise, non-jitterycursor control.Ideal application for theScreenCoderTM USB UR7HCTS2-U860 includeportable devices, interactive kiosksand industrial / custom displayswith integrated touch screens.

The universal features of theScreenCoderTM USB UR7HCTS2-U860, asimplemented in both the systemand the sensor interface, reduce
the development effort and cost oftouch input based systems. TheScreenCoderTM USB is available ina slim, 36-pin SSOP package.
