UR7HCTS2-P840

Features: • Controller & digitizer in a single IC; o need for external A/D• Interfaces ANY 4- or 8-wire esistive touch screen to standard S/2 mouse port; regardless of ize, material or vendor• High-performance IC offers ccurate cursor control due to dvanced algorithms• ...

product image

UR7HCTS2-P840 Picture
See larger image
SeekIC No. : 004538509 Detail

UR7HCTS2-P840: Features: • Controller & digitizer in a single IC; o need for external A/D• Interfaces ANY 4- or 8-wire esistive touch screen to standard S/2 mouse port; regardless of ize, material ...

UR7HCTS2-P840 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UR7HCTS2-P840
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Controller & digitizer in a single IC; o need for external A/D
• Interfaces ANY 4- or 8-wire esistive touch screen to standard S/2 mouse port; regardless of ize, material or vendor
• High-performance IC offers ccurate cursor control due to dvanced algorithms
• Low-power consumption, due to ophisticated power management tates, ideal for battery-operated ystems
• Highly resistant to RF & other oise sources
• Enables hot-plug connection of n external pointing device
• Wheelmouse functionality is upported in the external pointing evice
• Other interfaces available
• Embedded touch screen andexternal pointing device can perate concurrently with no erformance penalty
• Supports both absolute and elative (mouse-like) modes of peration
• For relative mode, no special rivers are needed; highfunctionality river available for bsolute mode
• Supports all commands defined n the IBM PS/2 Mouse ommunication Protocol, as ell as Semtech's extended PS/2 ommunication protocol with bsolute positioning support
• Available in a low-profile 32-pin QFP package
• Few external components required


Application

• Portable systems
• Notebooks and Laptops
• Interactive Kiosks
• Touch-enabled monitors


Pinout

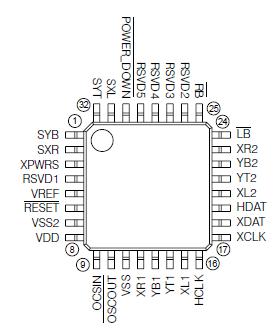

Connection Diagram


Specifications

Ratings
Symbol
Value
Unit
Supply Voltage
Vdd
-0.3 to 7.0
V
Input Voltage
All input pins
Vin
Vss -0.3 to Vdd +0.3
V
Current Drain per Pin
(not including Vss or Vdd)
I
20
mA
Operating Temperature
UR7HCTS2-P840
Ta
T low to T high
-20 to +85
° C
° C
Storage Temperature Range
Tstg
-40 to +250
° C



Description

The ScreenCoderTM PS2 UR7HCTS2-P840 is a highperformance C that interfaces any or 8-wire resistive touch screento the standard PS/2 mouse port. ow-power and tiny, the single ICs UR7HCTS2-P840 ideal for portable systems, web hones and interactive kiosks. It offers an advanced algorithm for enhanced motion control as well as an extra port for hot-plug connection of an external PS/2 pointing device. Both the touch screen and the external device can be operated concurrently without any penalty.

The UR7HCTS2-P840 is equipped with a special command protocol that enables the touch screen to operate in either relative (mouselike) or absolute positioning mode.

Because the IC UR7HCTS2-P840 interfaces via the PS/2 mouse port, it can utilize any standard mouse driver when operating in relative mode. For absolute positioning, offers a highfunctionality driver which includes inking capabilities. Mice connected to the ScreenCoderTM PS2 external mouse port will always act in relative mode, even if the touch screen of UR7HCTS2-P840 is operating in the absolute mode. The PS/2 communication channel is bi-directional at 10 kbps.

The ScreenCoderTM PS2 UR7HCTS2-P840 offers builtin A/D. Touch detection and motion are handled in firmware, and no digitizer is required. The cost-effective solution requires few external components, allowing for a simple and real estate saving implementation.
