Product Details

Description



Features:

• Interfaces PS/2 data to Sun
• Some devices can be used concurrently
• PS/2 devices can be hot-plugged
• Available in DIP, PLCC and Quad Flat packages
• Custom versions available in small or large quantities


Application

• System Legacy Support

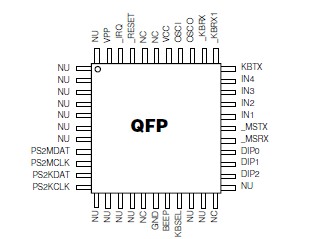

Pinout

Connection Diagram


Specifications

Ratings
Symbol
Value
Unit
Supply voltage
Vdd
-0.3 to +7.0
V
Input voltage
Vin
Vss -0.3 to VDD +0.3
V
Current drain per pin
(not including Vss or Vdd)
I
25
mA
Operating temperature
UR7HCDMP- xx
Ta
T low to T high
0 to +70
-40 to +85
°C
Storage temperature range
Tstg
-65 to +150
°C

Ambient temperature under bias

Tbias

-55 to +125

°C




Description

The USAR SunAdaptTM UR6HCSUN is a single IC that converts any off-the-shelf or proprietary PS/2 human input device, such as a keyboard, mouse, touch screen, barcode scanner to a Sun-compatible system.

This IC UR6HCSUN was designed for the SunAdaptTM protocol interpreter - a single box that emulates all the functions of a PS/2 system keyboard controller on one end and provides output for a Suncompatible keyboard and mouse on the other.

The IC UR6HCSUN allows an external PS/2 keyboard, an external PS/2 Mouse and a Sun mouse to operate concurrently. A Sun keyboard may also operate with a PS/2 mouse and Sun mouse as long as the PS/2 keyboard has been unplugged. The PS/2 devices UR6HCSUN may be hot-plugged. No additional software drivers or hardware, including a power supply is needed.
