Product Details

Description



Features:

 UPI-41: 6 MHz; UPI-42: 12.5 MHz
Pin, Software and Architecturally
    Compatible with all UPI-41 and UPI-42
    Products
8-Bit CPU plus ROM/OTP EPROM, RAM,
    I/O, Timer/Counter and Clock in a
    Single Package
2048 x 8 ROM/OTP, 256 x 8 RAM on
   UPI-42, 1024 x 8 ROM/OTP, 128 x 8
   RAM on UPI-41, 8-Bit Timer/Counter, 18
   Programmable I/O Pins
One 8-Bit Status and Two Data
    Registers for Asynchronous Slave-to-
    Master Interface
DMA, Interrupt, or Polled Operation
    Supported
Fully Compatible with all Intel and Most
     Other Microprocessor Families
    vInterchangeable ROM and OTP EPROM
    Versions
Expandable I/O
Sync Mode Available
Over 90 Instructions: 70% Single Byte
Available in EXPRESS
   ÐStandard Temperature Range
inteligent Programming Algorithm
   ÐFast OTP Programming
Available in 40-Lead Plastic and 44-
   Lead Plastic Leaded Chip Carrier
   Packages


Pinout

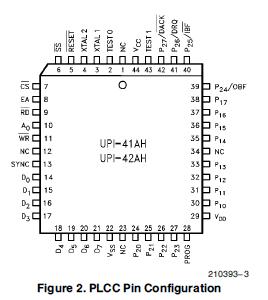

Connection Diagram


Specifications

Ambient Temperature Under Bias ....0 to a70
Storage Temperature ........-65 to a150
Voltage on Any Pin with
Respect to Ground.............b0.5V to a7V
Power Dissipation .................1.5 W


Description

The Intel UPI-41AH and UPI-42AH are general-purpose Universal Peripheral Interfaces that allow the designer
to develop customized solutions for peripheral device control.

UPI-41AH and UPI-42AH are essentially ``slave'' microcontrollers, or microcontrollers with a slave interface included on the chip.

Interface registers UPI-41AH and UPI-42AH are included to enable the UPI device to function as a slave peripheral controller in the MCS Modules and iAPX family, as well as other 8-, 16-, and 32-bit systems.

To allow full user flexibility, the UPI-41AH and UPI-42AH program memory is available in ROM and One-Time Programmable EPROM (OTP). All UPI-41AH and UPI-42AH devices are fully pin compatible for easy transition from prototype to production level designs.
