UPG2035T5F

Features: • OPERATING FREQUENCY: 2.4 to 2.5 GHz and 4.9 to 6.0 GHz (specified) 2.0 to 6.0 GHz Broadband Operation (unspecified)• LOW INSERTION LOSS: 0.8 dB TYP. @ 2.4 to 2.5 GHz 1.2 dB TYP. @ 4.9 to 6.0 GHz• POWER HANDLING: Pin (1 dB) = +31 dBm TYP. @ 2.4 to 2.5 GHz +30 dBm TYP....

product image

UPG2035T5F Picture
See larger image
SeekIC No. : 004538356 Detail

UPG2035T5F: Features: • OPERATING FREQUENCY: 2.4 to 2.5 GHz and 4.9 to 6.0 GHz (specified) 2.0 to 6.0 GHz Broadband Operation (unspecified)• LOW INSERTION LOSS: 0.8 dB TYP. @ 2.4 to 2.5 GHz 1.2 dB ...

UPG2035T5F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPG2035T5F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• OPERATING FREQUENCY:
   2.4 to 2.5 GHz and 4.9 to 6.0 GHz (specified)
   2.0 to 6.0 GHz Broadband Operation (unspecified)
• LOW INSERTION LOSS: 0.8 dB TYP. @ 2.4 to 2.5 GHz
  1.2 dB TYP. @ 4.9 to 6.0 GHz
• POWER HANDLING:
   Pin (1 dB) = +31 dBm TYP. @ 2.4 to 2.5 GHz
   +30 dBm TYP. @ 4.9 to 6.0 GHz
• CONTROL VOLTAGE: +3.0 V / 0 V (Dual control)
• HIGH ISOLATION: INPUT to OUTPUT = 34 dB TYP. @ 2.4 to 2.5 GHz
   INPUT to OUTPUT = 33 dB TYP. @ 4.9 to 6.0 GHz
   TX to RX, ANT1 to ANT2 = 24 dB TYP. @ 2.4 to 2.5 GHz
   TX to RX, ANT1 to ANT2 = 22 dB TYP. @ 4.9 to 6.0 GHz
• INPUT/OUTPUT RETURN LOSS: 15 dB TYP.
• SWITCHING SPEED: 50 ns @ tRISE/tFALL (10/90% RF)
• 12-PIN PLASTIC QFN PACKAGE: (3.0 × 3.0 × 0.75 mm)
• Pb FREE


Application

• 802.11a+b/g WIRELESS LAN
• 2.0 TO 6.0 GHz T/R SWITCHING
• 2.0 TO 6.0 GHz ANTENNA DIVERSITY SWITCHING


Pinout

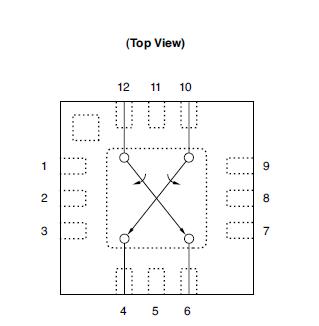

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
 UNIT
Switch Control Voltage
Vcont
−6.0 to +6.0 Note1
V
Input Power
Pin
+36
dBm
Total Power Dissipation
Ptot
0.15 Note 2
W
Operating Ambient Temperature
TA
-45 to +85
°C
Storage Temperature
Tstg
-55 to +150
°C
Notes 1. | Vcont1 − Vcont2 | 6.0 V
2. Mounted on double-sided copper-clad 50 * 50 * 1.6 mm epoxy glass PWB, TA = +85°C


Description

NEC's UPG2035T5F is a GaAs MMIC DPDT switch for 2.4 GHz and 5 GHz dualband Wireless LAN.

The UPG2035T5F features low insertion loss, high isolation, and dualband operation.
