UPG181GR

Number of Switches :
Switch Configuration :
Insertion Loss :
Off Isolation (Typ) :
Maximum Operating Temperature :
Minimum Operating Temperature :
Packaging :
Mounting Style : SMD/SMT
Package / Case : HTSSOP-16


Features:

• TWO INDEPENDENT IF CHANNELS
• INTEGRAL SWITCHING TO CHANNEL INPUT TO EITHER CHANNEL OUTPUT
• INSERTION LOSS PER CHANNEL: 5.0 dB TYP (ZO = 50 Ω)
• FREQUENCY RANGE: 950 MHz to 2150 MHz
• CHANNEL TO CHANNEL ISOLATION: 33 dB TYP
• SMALL 16 PIN HTSSOP PACKAGE
• AVAILABLE ON TAPE AND REEL

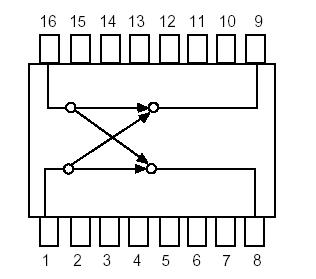

Pinout




Specifications

SYMBOLS	PARAMETERS	UNITS	RATINGS
VCONT1,2,3,4	Control Voltage 1, 2, 3, 42	V	-1 to +6
PTOT	Total Power Dissipation3	W	2
TA	Operating Ambient Temp.		-40 to +85
TSTG	Storage Temperature		-65 to +150

Notes:
1. Operation in excess of any one of these parameters may result in permanent
    damage.
2. | VCONT(H) - VCONT(L) | 6.0 V
3. Mounted on a 50x50x1.6 mm double copper clad epoxy glass PWB, TC = +85 .


Description

The UPG181GR is intended for use in Direct Broadcast Satellite (DBS) applications within the Low Noise Block (LNB) downconverter for systems where at least two LNB outputs are required. It offers two intermediate frequency amplifier channels that can independently select 1 of 2 IF inputs. It is housed in a very small 16 pin plastic HTSSOP package and is available on tape-and-reel. The UPG181GR is easy to install and contributes to miniaturizing the systems.
