UPD78P083

Features:

` Pin-compatible with mask ROM version (except V<sub>PP</sub> pin)
` Internal PROM: 24 Kbytes ^Note
    • PD78P083DU: Reprogrammable (ideally suited for system evaluation)
    • PD78P083CU, PD78P083GB: One-time programmable (ideally suited for small-scale production)
` Internal high-speed RAM: 512 bytes <sup>Note</sup>
` Can be operated in the same supply voltage as the mask ROM version (V_DD = 1.8 to 5.5 V)
` Corresponding to QTOP^TM Microcontrollers

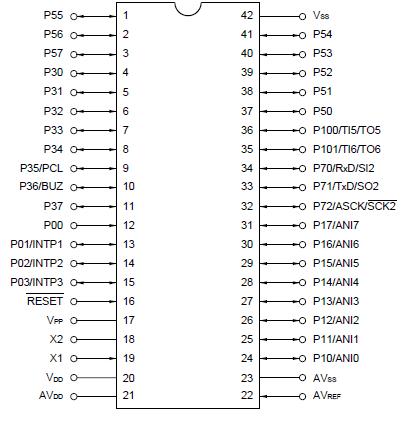

Pinout




Specifications

Parameter	Symbol	Test Conditions		Ratings	Unit
Supply voltage	VDD			0.3 to +7.0	V
	VPP			0.3 to +13.5	V
	AVDD			0.3 to VDD + 0.3	V
	AVREF			0.3 to VDD + 0.3	V
	AVSS			0.3 to +0.3	V
Input voltage	VI1			0.3 to VDD + 0.3	V
	VI2	A9	PROM programming mode	0.3 to +13.5	V
Output voltage	VO			0.3 to VDD + 0.3	V
Analog input voltage	VAN	P10-P17	Analog input pins	AVSS 0.3 to AVREF + 0.3	V
Output current, high	IOH	Per pin		-10	mA
		Total for P10-P17, P50-P54, P70-P72, P100, P101		-15	mA
		Total for P01-P03, P30-P37, P55-P57		-15	mA
Output current, low	IOL Note	Per pin	Peak value	30	mA
			r.m.s. value	15	mA
		Total for P50-P54	Peak value	100	mA
			r.m.s. value	70	mA
		Total for P55-P57	Peak value	100	mA
			r.m.s. value	70	mA
		Total for P10-P17, P70-P72, P100,P101	Peak value	50	mA
			r.m.s. value	20	mA
		Total for P01-P03, P30-P37	Peak value	50	mA
			r.m.s. value	20	mA
Operating ambient temperature	TA			40 to +85
Storage temperature	Tstg			65 to +150

Note The r.m.s. value should be calculated as follows: [r.m.s. value] = [Peak value] x Duty


Description

The mPD78P083 is a member of the mPD78083 subseries of the 78K/0 series products. It includes an on-chip, 24-Kbyte, one-time PROM or EPROM.

Because this device mPD78P083 can be programmed by users, it is ideally suited for applications involving the evaluation of systems in development stages, small-scale production of many different products, and rapid development and time-to-market of a new product.
