UPD78F0974

Features: * High-speed instruction execution time (0.24 s: @ 8.38-MHz operation with main system clock)* Instruction set suited to system control* Bit manipulation possible in all address spaces* Multiply and divide instructions Fifty-six I/O ports(including pins that have an alternate function as...

product image

UPD78F0974 Picture
See larger image
SeekIC No. : 004538323 Detail

UPD78F0974: Features: * High-speed instruction execution time (0.24 s: @ 8.38-MHz operation with main system clock)* Instruction set suited to system control* Bit manipulation possible in all address spaces* Mu...

UPD78F0974 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPD78F0974
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* High-speed instruction execution time (0.24 s: @ 8.38-MHz operation with main system clock)
* Instruction set suited to system control
* Bit manipulation possible in all address spaces
* Multiply and divide instructions Fifty-six I/O ports
   (including pins that have an alternate function as segment signal output)
* LCD controller/driver
* Segment signal output : 20 max.
* Common signal output : 4 max.
* Bias : 1/3 bias
* Power supply voltage : VLCD = 3.0 V to VDD
* 8-bit resolution A/D converter : 5 channels
* Serial interface : 2 channels
* 3-wire serial I/O mode : 1 channel
* UART mode : 1 channel
* Timer : Six channels
* 16-bit timer : 1 channel
* 8-bit timer : 1 channel
* 8-bit timer/event counter : 2 channels
* Watch timer : 1 channel
* Watchdog timer : 1 channel
* Meter controller/driver : PWM output (8-bit resolution) : 16
   : Can set pulse width with a precision of 8 + 1 bits with 1-bit addition function
* Sound generator : 1 channel
* Vectored interrupt sources : 21
* Power supply voltage : VDD = 5 V ±10%


Application

Automobile meter (dash board) control


Pinout

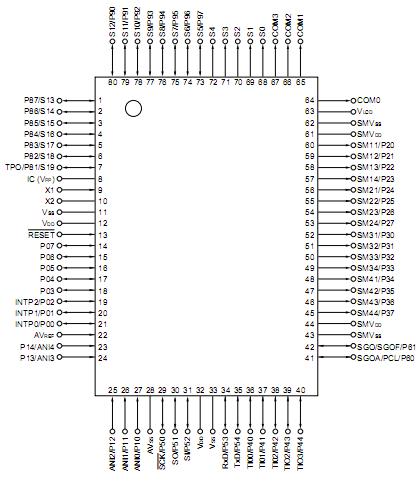

Connection Diagram
