UPD784907

Features: • 78K/IV Series• Minimum instruction execution time: 320 ns (at 6.29 MHz)160 ns (at 12.58 MHz)• Number of I/O ports: 80• Timer/counters: 16-bit timer/counter × 3 units 16-bit timer × 1 unit• Serial interface: 4 channelsUART/IOE (3-wire serial I/O): 2 channel...

product image

UPD784907 Picture
See larger image
SeekIC No. : 004538315 Detail

UPD784907: Features: • 78K/IV Series• Minimum instruction execution time: 320 ns (at 6.29 MHz)160 ns (at 12.58 MHz)• Number of I/O ports: 80• Timer/counters: 16-bit timer/counter × 3 un...

UPD784907 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPD784907
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 78K/IV Series
• Minimum instruction execution time: 320 ns (at 6.29 MHz)
                                                           160 ns (at 12.58 MHz)
• Number of I/O ports: 80
• Timer/counters: 16-bit timer/counter × 3 units
                            16-bit timer × 1 unit
• Serial interface: 4 channels
UART/IOE (3-wire serial I/O): 2 channels
         CSI (3-wire serial I/O): 2 channels
• PWM outputs: 2
• Standby function
   HALT/STOP/IDLE mode
• Clock frequency division function
• Watchdog timer: 1 channel
• Clock output function
Selectable from fCLK, fCLK/2, fCLK/4, fCLK/8, or fCLK/16
• A/D converter: 8-bit resolution × 8 channels
• On-chip IEBus controller
• Watch timer
• Low-power consumption
• Supply voltage: VDD = 4.0 to 5.5 V
                            (Main clock: fXX = 12.58 MHz,
                            internal system clock = fXX,
                            fCYK = 79 ns)
                           VDD = 3.5 to 5.5 V
                           (Other than above, fCYK = 159 ns)


Application

Car audios, etc.


Pinout

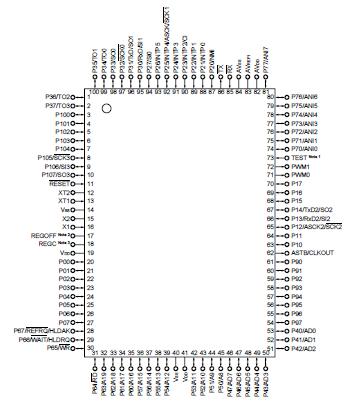

Connection Diagram


Description

The PD784907 and mPD784908 are products of the PD784908 Subseries in the 78K/IV Series. These products contain various peripheral hardware such as IEBusTM controller, ROM, RAM, I/O ports, 8-bit resolution A/D, timers, serial interface, and interrupt functions, as well as a high-speed, high-performance CPU.

In addition, the mPD78P4908 (one-time PROM product), which is used to evaluate the functions of mask ROM versions, and development tools are also available.
