Product Details

Description



Features:

• Internal high-capacity ROM & RAM
• External memory expansion space: 64K bytes
• Minimum instruction execution time changeable from high speed (0.4 ms) to ultra low-speed (122 ms)
• I/O ports: 68 pins (N-ch open-drain : 4 pins)
• 8-bit resolution A/D converter : 8 channels (VDD = 2.7 to 5.5 V)
• 8-bit resolution D/A converter : 2 channels (VDD = 2.7 to 5.5 V)
• Serial interface : 3 channels
• Timer : 5 channels
• Operating voltage range : VDD = 1.8 to 5.5 V


Pinout

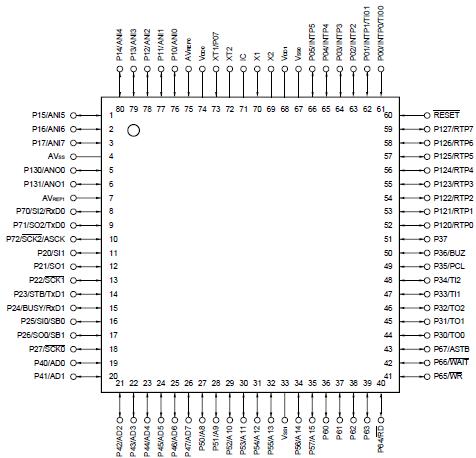

Connection Diagram


Specifications

Parameter
Symbol
Test Conditions
Rating
Unit
Supply voltage
VDD
0.3 to +7.0
V
AVDD
0.3 to VDD + 0.3
V
AVREF0
0.3 to VDD + 0.3
V
AVREF1
0.3 to VDD + 0.3
V
AVSS
0.3 to +0.3
V
Input voltage
VI1
P00-P05, P07, P10-P17, P20-P27, P30-P37, P40-P47,P50-P57, P64-P67, P70-P72, P120-P127, P130, P131,X1, X2, XT2, RESET
0.3 to VDD + 0.3
V
VI2
P60-P63
N-ch Open-drain
0.3 to +16
V
Output voltage
VO
0.3 to VDD + 0.3
V
Analog input voltage    VAN
P10-P17
Analog input pin
AVSS 0.3 to AVREF0 + 0.3
V
Output current, high
IOH
1 pin
-10
mA
P01-P05, P30-P37, P56, P57, P60-P67, P120-P127 total
-15
mA
P10-P17, P20-P27, P40-P47, P50-P55, P70-P72,P130, P131 total
-15
mA
Output
current, low
IOL Note
1 pin
Peak value
30
mA
rms value
15
mA
P50-P55 total
Peak value
100
mA
rms value
70
mA
P56, P57, P60-P63 total
Peak value
100
mA
rms value
70
mA
P10-P17, P20-P27, P40-P47,P70-P72, P130, P131 total
Peak value
50
mA
rms value
20
mA
P01-P05, P30-P37, P64-P67,P120-P127 total
Peak value
50
mA
rms value
20
mA
Operating ambient temperature
TA
40 to +85
Storage temperature
Tstg
65 to +150
Note rms value should be calculated as follows: [rms value] = [Peak value] duty


Description

The UPD780053,780054,780055,780056 and 780058 are members of the mPD780058 subseries in the 78K/0 series. These microcontrollers UPD780053,780054,780055,780056 and 780058 suppress the EMI (Electro Magnetic Interference) noise internally generated to the lower level than the existing UPD78054 subseries. In addition, they have many peripheral hardware units such as an 8-bit resolution A/D converter, 8-bit resolution D/A converter, timers, serial interface, real-time output ports, and interrupt functions.

A flash memory model that can operate on the same voltage as the mask ROM models, mPD78F0058, and various development tools are now under development.
