UPD754264

Features:

• On-chip EEPROM: 32 ´ 8 bits (mapped to the data memory)
• On-chip key return reset function for key-less entry
• On-chip low-voltage A/D converter (AVREF = 1.8 to 6.0 V), 8-bit resolution ´ 2 channels
• Low-voltage operation: VDD = 1.8 to 6.0 V
• Timer function (4 channels)
• Basic interval timer/watchdog timer : 1 channel
• 8-bit timer counter : 3 channels
• On-chip memory
• Program memory (ROM) 4096 ´ 8 bits
• Data memory (static RAM)128 ´ 4 bits
• Instruction execution time variable function suited for high-speed operation and power saving.
  0.95, 1.91, 3.81, 15.3 ms (@ fX = 4.19-MHz operation)
  0.67, 1.33, 2.67, 10.7 ms (@ fX = 6.0-MHz operation)


Application

Automotive appliances such as key-less entry, compact data carrier, etc.

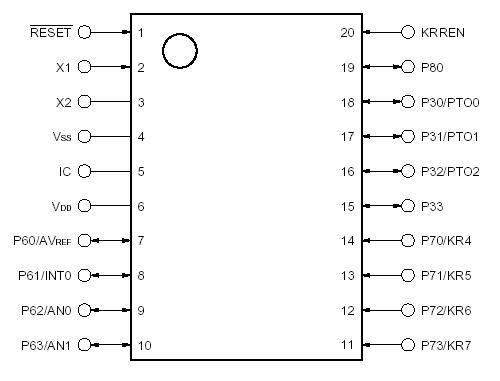

Pinout




Description

The uPD754264 is a 4-bit single-chip microcontroller which incorporates the EEPROMTM for key-less entryapplication.It incorporates a 32 ´ 8-bit EEPROM, a CPU performing operation, a 4-Kbyte mask ROM to store software,a 128 ´ 4-bit RAM to store the operation data, an 8-bit resolution A/D converter, and a carrier generator which easily outputs waveforms for infrared remote controller.The details of functions are described in the following user's manual. Be sure to read it before designing.
