UPD61P24

Features: • Transmitter for programmable infrared remote control-ler• 19 types of instructions• Instruction execution time: 17.6 µs (with 455-kHz ce-ramic resonator)• On-chip one-time PROM: 1002 * 10 bits• Data memory (RAM) capacity : 32 * 5 bits• 9-bit pr...

product image

UPD61P24 Picture
See larger image
SeekIC No. : 004538184 Detail

UPD61P24: Features: • Transmitter for programmable infrared remote control-ler• 19 types of instructions• Instruction execution time: 17.6 µs (with 455-kHz ce-ramic resonator)• O...

UPD61P24 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPD61P24
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Transmitter for programmable infrared remote control-ler
• 19 types of instructions
• Instruction execution time: 17.6 µs (with 455-kHz ce-ramic resonator)
• On-chip one-time PROM:  1002 * 10 bits
• Data memory (RAM) capacity  :  32 * 5 bits
• 9-bit programmable timer: 1 channel
• I/O pins (KI/O):  8 pins
• Input pins (KI):  4 pins
• Serial input pins (S-IN):  1 pin
• Transmission-in-progress indication pin (S-OUT): 1pin
• Transmit carrier frequency (REM)fOSC/12, fOSC/8
• Standby operation (HALT/STOP mode)
• Low power consumption
• Current consumption in STOP mode (TA = 25)1 µA MAX.
• Low-voltage operation:  VDD = 2.2 to 5.5 V


Pinout

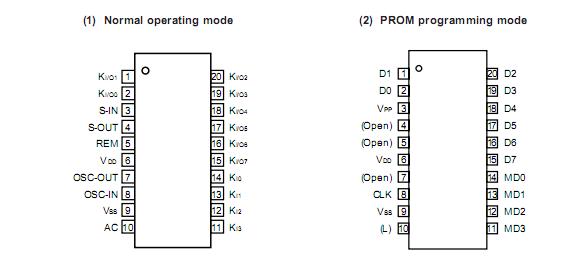

Connection Diagram


Specifications

Parameter
Symbol
Ratings

Unit

SupplyVoltage
VDD
7.0
V
Input Voltage
VIN
0.3 to VDD + 0.3
V
Operating Ambient Temperature
TA
20 to +75

Storage Temperature
Tstg
40 to +125



Description

The µPD61P24 is a 4-bit single-chip microcontroller for infrared remote controllers for TVs, VCRs, stereos,cassettedecks, air conditioners, etc.As the µPD61P24 is user-programmable, it is ideal for evaluationof programs running in a µPD6124A or 6600A,and for small-scale production of such systems.

The functions of the µPD61P24 are described in detail in the following User's Manual. Be sure to read thismanual before designing your system.
