Product Details

Description



Features:

• Program memory (ROM)     :  512 * 10 bits
• Data memory (RAM)           : 32 * 4 bits
• Built-in carrier generation circuit for infrared remote control
• 9-bit programmable timer  : 1 channel
• Command execution time  : 8 µs (when operating at fX = 1 MHz: ceramic oscillation)
• Stack level                  : 1 level (Stack RAM is for data memory RF as well.)
• I/O pins (KI/O)            : 8 units
• Input pins (KI)            : 4 units
• Sense input pin (S0)   : 1 unit
•S1/LED pin (I/O)           : 1 unit (When in output mode, this is the remore control transmissiondisplay pin.)
• Power supply voltage : VDD = 1.8 to 3.6 V (when operating at fX = 500 kHz)
                                        VDD = 2.2 to 3.6 V (when operating at fX = 1 MHz)
• Operating ambient temperature : TA = 40 to +85
• Oscillation frequency                   : fX = 300 kHz to 1 MHz
• POC circuit (Mask option)




Application

Infrared remote control transmitter (for AV and household electric appliances)


Pinout

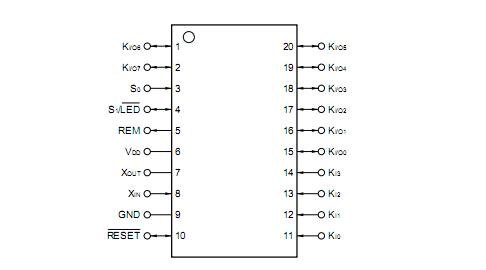

  Connection Diagram


Specifications

Parameter
Symbol
Test Conditions
Rating
Unit
Power supply voltage
VDD
0.3 to +5.0
V

KI/O, KI, S0, S1, RESET
0.3 to VDD + 0.3
V
Input voltage
VI
0.3 to VDD + 0.3
V
Output voltage
VO
REM
Peak value
30
mA
High-level output current

IOHNote



rms
20
mA
LED
Peak value
7.5
mA
rms
5
mA
One KI/O pin
Peak value
13.5
mA
rms
9
mA
Total of LED and KI/O pins
Peak value
18
mA
rms
12
mA
High-level output current
IOHNote
REM
Peak value
7.5
mA
rms
5
mA
Low-level output current
LED
Peak value
7.5
mA
rms
5
mA
Operating ambient
temperature
TA
40 to +85
˚C
Storage temperature
Tstg
65 to +150
˚C



Description

Equipped with low-voltage 1.8V operation, a carrier generation circuit for infrared remote controltransmission,a standby release function through key entry, and a programmable timer, the µPD6132 issuitable

for infrared remotecontrol transmitters.For the µPD6132, we have made available the one-time PROM product µPD61P34B for program evaluation orsmall-quantity production.
