UPD4701A

Features:

 X, Y 2-axis incremental encoder counter
Counter input (Schmitt-triggered input)

  Counters:  12-bit binary up/down counters (2 sets, X & Y)Reset value:  000H
  Count data output:  8-bit parallel latch output * 2 (including key input flag)
  On-chip 3-contact-point key input buffer circuit
CMOS
Single +5 V power supply

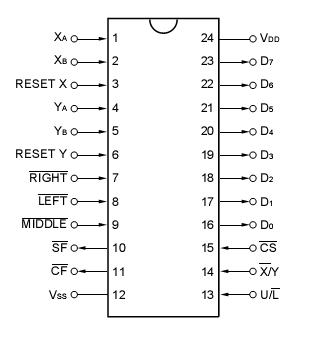

Pinout




Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply voltage	VDD	0.5 to +7.0	V
nput voltage	VI	1.0 to VDD +1.0	V
Output voltage	VO	0.5 to VDD +0.5	V
Operating temperature	Operating temperature	40 to +85	°C
Storage temperature	Tstg	65 to +150	°C
Permissible loss	PD	500	mW

Description

The PD4701A is a counter for an X, Y 2-axis incremental encoder. When a two-phase encoder signal is inputfor the X and Y axes, direction discrimination and computation is performed, and count data is output in 8-bit parallelform. In addition, a 3-contact-point input buffer is incorporated, which is useful for applications which use a pointingdevicesuch as a mouse or track-ball. The CPU checks the switch input flag or count flag and reads the 12-bit countdata in twooperations, one for the lower byte and one for the upper byte. The key input flag is output together withthe count data in the upper byte.
