Product Details

Description



Features:

• 131,072 words by 8 bits organization
• Fast access time : 70, 85, 100, 120, 150 ns (MAX.)
• Low voltage operation(B version : VCC = 2.7 to 3.6 V, C version : VCC = 2.2 to 3.6 V, D version : VCC = 1.8 to 3.6 V)
• Low VCC data retention(B version : 2.0 V (MIN.), C version, D version : 1.5 V (MIN.))
• Operating ambient temperature : TA = 25 to +85 °C
• Output Enable input for easy application
• Two Chip Enable inputs : /CE1, CE2

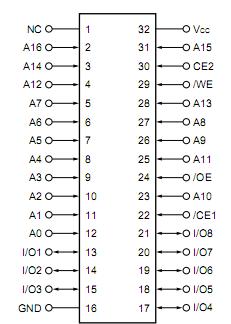

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply voltage
VCC
0.5 Noteto +4.6
V
Input / Output voltage
VT
0.5 Noteto VCC+0.5
V
Operating ambient temperature
TA
25 to +85
Storage temperature
Tstg
55 to +125



Description

The µPD441000L-X is a high speed, low power, 1,048,576 bits (131,072 words by 8 bits) CMOS static RAM.

The µPD441000L-X has two chip enable pins (/CE1, CE2) to extend the capacity.

The µPD441000L-X is packed in 32-pin plastic SOP and 32-pin plastic TSOP (I) (8×13.4 mm) and (8×20 mm).
