Product Details

Description



Features:

• Two P-ch power MOSFET circuits
• Overcurrent detector that outputs active-low control signal from detection report pin
• Overcurrent limiter to prevent system voltage drop
• Thermal shutdown circuit
• Undervoltage lockout circuit
• Each of two circuits can be turned on and off independently of the others by a control pin.
• 8-pin SOP package

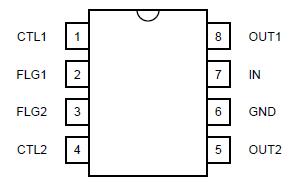

Pinout

Connection Diagram


Specifications

Parameter
Symbol
 Conditions
Rating
Unit
Input voltage
VIN

−0.3 to +6
V
Flag voltage
VFLG

−0.3 to +6
V
Flag current
IFLG

50
mA
Output voltage
VOUT

VIN+0.3
V
Output current
IOUT
 DC
+0.5 (VIN = VCTL = 5 V)
−0.1 (VIN = 0 V, VOUT = 5 V)
A
Pulse width Single 100 s pulse
±3
A
Control input
VCTL

−0.3 to +6
V
Total power dissipation
PD

300
mW
Operating temperature range
TA

−40 to +85
°C
Junction temperatureNote

TCH(MAX)


150
°C
Storage temperature
Tstg

-55 to +150
°C
Note This product has an internal thermal shutdown circuit (operating temperature: 150°C or higher TYP.)


Description

The PD16875 is a power switch IC with an overcurrent limiter that is used for the power bus of a Universal Serial Bus (USB). This product has two Pch power MOSFET circuits, each of which has a low-on resistance (100 m TYP.), in its switching block. This product is a low-current-consumption version of the PD16855B that boasts an operating current consumption of as low as 100 A (MAX.).

In addition, the IC is also equipped with an overcurrent detector that is essential for a host/hub controller conforming to the USB Standard, so that the IC can report an overcurrent to the controller. Moreover, a thermal shutdown circuit and an undervoltage lockout circuit are also provided as the protection circuits of the IC.

This product has two channels of power switches, control input pins, and flag output pins to simultaneously control two USB ports with a single IC.
