UPD16835AGG

•Four H bridge circuits employing power MOS FETs
•Current-controlled 64-step micro step driving
•Motor control by serial data (8 bytes x 8 bits) (original oscillation: 4-MHz input)Data is input with the LSB first.EVR reference setting voltage: 100 to 250 mV (@VREF = 250 mV) ... 4-bit data input (10-mV step)Chopping frequency: 32 to 124 kHz ... 5-bit data input (4-kHz step)Original oscillation division or internal oscillation selectableNumber of pulses in 1 VD: 0 to 252 pulses ... 6 bits + 2-bit data input (4 pulses/step)Step cycle: 0.25 to 8191.75 µs ... 15-bit data input (0.25- µs step)
•3-V power supply. Minimum operating voltage: 2.7 V (MIN.)
•Low current consumption IDD: 3.0 mA (MAX.), IDD RESET): 100 µA (MAX.), IMO(RESET): 1.0 µA (MAX.)

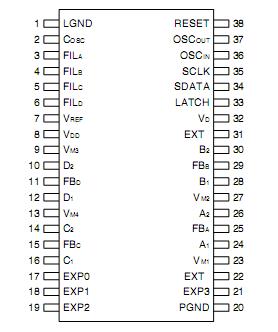

•38-pin plastic shrink SOP (7.62 mm (300))

The µPD16835A is a monolithic quad H bridge driver IC that employs a CMOS control circuit and a MOS FEToutput circuit. Because it uses MOS FETs in its output stage, this driver IC onsumes less power than conventionaldriver ICs that use bipolar transistors.Because the µPD16835A controls a motor by inputting serial data, its package has been shrunk and the numberof pins reduced. As a result, the performance of the application set can be improved and the size of the set has beenreduced.The µPD16835A employs a current-controlled 64-step micro step driving method that drives stepper motor withlow vibration.The µPD16835A is housed in a 38-pin plastic shrink SOP to contribute to the miniaturization of the application set.The µPD16835A can simultaneously drive two stepper motors and is ideal for the mechanisms of camcorders.
