UPC8190K

Modulator / Demodulator AGC Amplifier

product image

UPC8190K Picture
See larger image
SeekIC No. : 00609568 Detail

UPC8190K: Modulator / Demodulator AGC Amplifier

UPC8190K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPC8190K
Mfg:
NEC/CEL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Package / Case : QFN-20

Description

Packaging :
Package / Case : QFN-20


Features:

• Rx-IF: 380 MHz
• LOW POWER CONSUMPTION:
  VCC = 3.0 V
• SMALL 20 PIN QFN PACKAGE
  Flat lead style for better performance
• TAPE AND REEL PACKAGING AVAILABLE


Application

• W-CDMA


Pinout

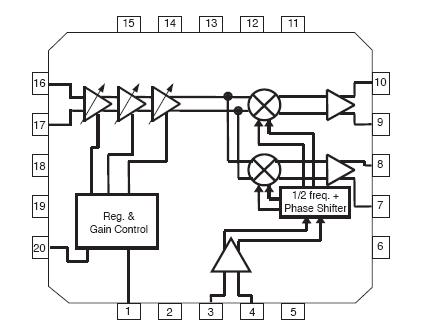

Connection Diagram


Specifications

SYMBOLS PARAMETERS UNITS RATINGS
VCC Supply Voltage V 4.0
VPS, VCONT Applied Voltage V -0.3 to VCC +0.3
Ta Operating Ambient Temperature °C -40 to +85
TSTG Storage Temperature °C -55 to +150
Notes:
1. Operation in excess of any one of these parameters may result
in permanent damage


Description

NEC's UPC8190K is a Silicon Monolithic Integrated Circuit designed as a receiver (RX) section for W-CDMA. The UPC8190K is a RX-IF IC including IF-AGC amplifier and demodulator. This IC is suitable for kit-use for W-CDMA IF section.

This IC was developed using NEC's new ultra high speed silicon bipolar process.

NEC's stringent quality assurance and test procedures ensure the highest reliability and perormance.
