UPC8187TB

RF Frequency :
IF Frequency :
LO Frequency :
Power Gain :
P1dB :
Operating Supply Current :
Maximum Power Dissipation :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Product : Up Converters
Package / Case : SOT-363
Operating Supply Voltage : 2.7 V to 3.3 V


Features:

* HIGH OUTPUT FREQUENCY:
   fRFout = 0.8 to 2.5 GHz
* SUPPLY VOLTAGE:
   V_CC = 2.7 to 3.3 V
* HIGH IP3 AND CONVERSION GAIN:
   OIP₃ = +10 dBm typ at fRFout = 0.9 GHz
   CG = +11 dBm typ at fRFout = 0.9 GHz
* HIGH-DENSITY SURFACE MOUNTING:
   6-pin super minimold package


Application

* TDMA, PCS, CDMA
* Digital Cellular/Cordless Phones
* Wireless Tranceivers

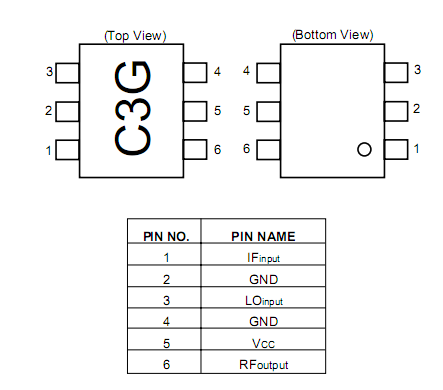

Pinout

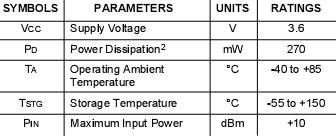

Specifications




Description

The UPC8187TB is a silicon monolithic integrated circuit designed as a frequency up-converter for wireless transceivers. This IC has higher operating frequency, lower distortion and  higher conversion gain than the conventional UPC8163TB. This device is manufactured using NEC's 30 GHz fmax UHS0 (Ultra High Speed Process) silicon bipolar process.

NEC's stringent quality assurance and test procedures ensure the highest reliability and performance.
