UPC8129GR

·WIDE OPERATING FREQUENCY RANGE:
   fRFOUT = 800 MHz to 1900 MHz
   fMODOUT = 100 MHz to 400 MHz, fI/Q = DC to 10 MHz
·PORTS FOR EXTERNAL IF FILTER
·LOW PHASE DIFFERENCE DUE TO DIGITAL PHASE SHIFTER
·WIDE SUPPLY VOLTAGE: V_CC = 2.7 to 5.5 V
·POWER SAVE FUNCTION
·20 PIN SSOP

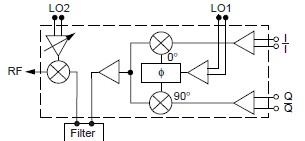

The UPC8129GR is a silicon RFIC designed as a quadrature modulator for digital mobile communication systems. This IC consists of a 0.8 GHz to 1.9 GHz up-converter and a 100 MHz to 400 MHz quadrature modulator which have been packaged in a 20 pin SSOP. The device has a power save function and operates with a 2.7 to 5.5 V supply voltage for low power consumption.
