UPC8119T

Noise Figure :
Bandwidth :
Output Intercept Point :
Supply Current :
Maximum Operating Temperature :
Packaging :
Mounting Style : SMD/SMT
Operating Supply Voltage : 2.7 V to 3.3 V
Type : RF IC's
Package / Case : SO-6
Operating Frequency : 1900 MHz


Features:

• FREQUENCY RESPONSE: 800 MHz to 1.9 GHz
• SUPPLY VOLTAGE RANGE: 2.7~3.3 V
• VAGC: 0.6~2.3 V
• SUPER SMALL SURFACE MOUNT PACKAGE
• TAPE AND REEL PACKAGING OPTION AVAILABLE
• GAIN CONTROL RANGE UP TO 40 dB

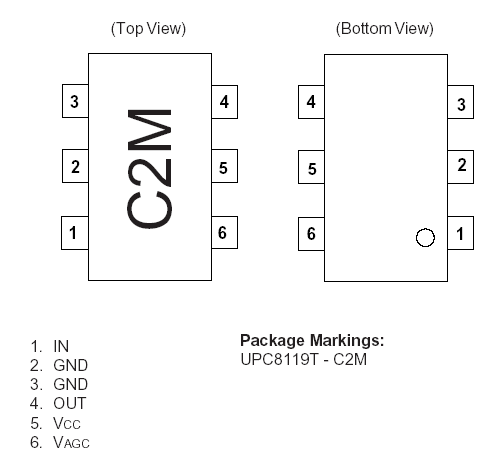

Pinout




Specifications

SYMBOLS	PARAMETERS	UNITS	RATINGS
VCC	Supply Voltage	V	3.6
VAGC	Gain Control Voltage	V	3.6
TOP	Operating Temperature		-40 to +85
TSTG	Storage Temperature		-55 to +150

Notes:
1. Operation in excess of any one of these conditions may result in permanent damage.


Description

The UPC8119T is a Silicon Monolithic Microwave Integrated Circuit which is manufactured using the NESAT III process. The NESAT III process produces transistors with fT approaching 20 GHz. This device is suitable as an Automatic Gain Control Amplifier stage in cellular radios, GPS receivers, PCN, and test/measurement equipment.

NEC's stringent quality assurance and test procedures assure the highest reliability and performance.
