UPC8116GR

RF Receiver 500MHz AM/ASK Recvr

product image

UPC8116GR Picture
See larger image
SeekIC No. : 00614623 Detail

UPC8116GR: RF Receiver 500MHz AM/ASK Recvr

UPC8116GR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPC8116GR
Mfg:
CEL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : RF IC's Package / Case : SO-20
Operating Frequency : 100 MHz to 500 MHz Operating Supply Voltage : 2.7 V to 5.5 V

Description

Packaging :
Operating Supply Voltage : 2.7 V to 5.5 V
Package / Case : SO-20
Type : RF IC's
Operating Frequency : 100 MHz to 500 MHz


Features:

• WIDEBAND RF & LO BANDWITH: 100~500 MHz
• HIGH GAIN: 118 dB Typical
• RSSI DYNAMIC RANGE: 70 dB
• LOW POWER DISSIPATION: 12 mW @ 3 V
• POWER SAVE FUNCTION
• SMALL PACKAGE: 20 pin SSOP
• AVAILABLE IN TAPE AND REEL


Pinout

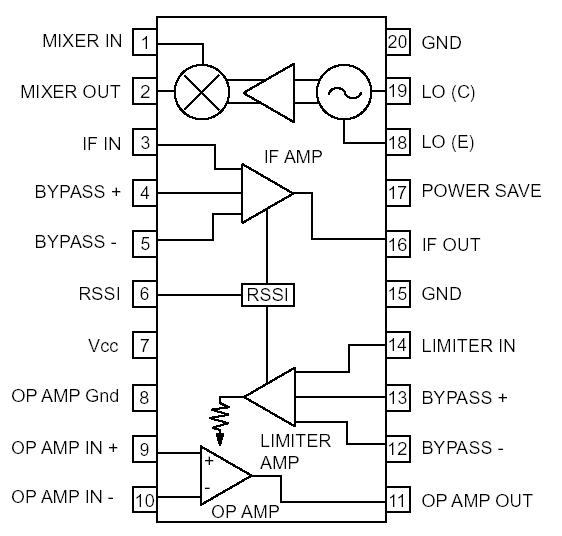

Connection Diagram


Specifications

SYMBOLS PARAMETERS UNITS RATINGS
VCC Supply Voltage V 6.0
PD Power Dissipation2 mW 433
TA Operation Temperature °C -40 to +85
TSTG Storage Temperature °C -55 to +150



Description

The UPC8116GR is a Si MMIC Wideband IF Receiver IC manufactured with the NESAT III silicon bipolar process. The IC consists of a mixer, on-chip oscillator, IF amplifier, limiter amplifier, OP amp, and built-in RSSI and power save functions. The device operates over a wide 2.7 to 5.5 V supply voltage range while drawing only 4 mA at 3 V. It is housed in a small 20 pin SSOP package. The device was specifically designed for use in low cost automotive keyless entry receivers, wireless security systems, UHF remote control, and other low power Part 15 applications.

NEC's stringent quality assurance and test procedures assure the highest reliability and performance.
