UPC3220GR

Product :
RF Frequency :
IF Frequency :
LO Frequency :
Power Gain :
P1dB :
Operating Supply Voltage :
Operating Supply Current :
Maximum Power Dissipation :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Package / Case : SSOP-16


Features:

• LOW DISTORTION: IIP3 = +1 dBm TYP.
• WIDE AGC DYNAMIC RANGE: GCRtotal = 46 dB TYP.
• LOW NOISE FIGURE: 7 dB TYP
• HIGH GAIN: 71 dB TYP
• ON CHIP VIDEO AMPLIFIER
• SINGLE SUPPLY VOLTAGE : 5 V
• PACKAGED IN 16-PIN SSOP SUITABLE FOR HIGH-DENSITY SURFACE MOUNTING


Application

• DIGITAL CABLE SETTOP BOXES
• HDTV RECEIVERS

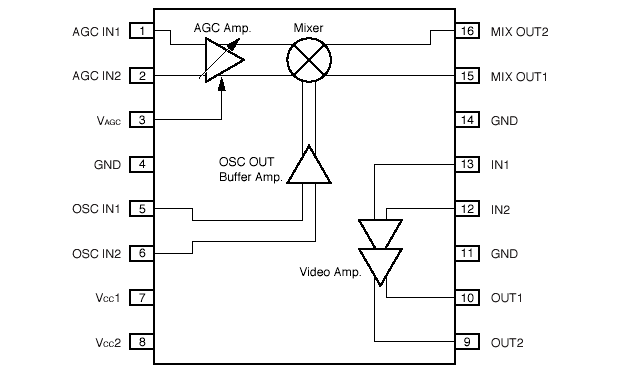

Pinout




Specifications

SYMBOL	PARAMETER	UNIT	RATINGS
VCC	Supply Voltage, TA = +25	V	6.0
PD	Power Dissipation, TA = +85	mW	433
TA	Operating Ambient Temperature		40 to +85
TSTG	Storage temperature		55 to +150

Description

The µPC3220GR is silicon monolithic IC designed for use as the  out-of-band tuner for digital CATV applications.  This IC consists  of AGC ampliÞ er,  low disortion mixer, and video ampliÞ er.

The package is 16-pin SSOP (Shrink Small Outline Package) suit- able for surface mount.

This IC is manufactured using our 10 GHz fT NESAT II AL silicon  bipolar process.

This process uses silicon nitride passivation Þ lm.  This mate- rial can protect chip surface from external pollution and prevent  corrosion/migration.  Thus, this IC has excellent performance,  uniformity and reliability.

NEC's stringent quality assurance and test procedures en sure the  highest reliability and per for mance.
