Product Details

Description



Features:

• LOW VOLTAGE - LOW CURRENT: 5 mA at 3 V
• LOW POWER CONSUMPTION: 15 mW TYP
• SUPER SMALL PACKAGE
• TAPE AND REEL PACKAGING OPTION AVAILABLE

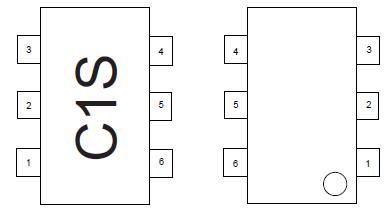

Pinout

Connection Diagram


Specifications

SYMBOLS PARAMETERS UNITS RATINGS
VCC Supply Voltage V 4.0
ICC Total Supply Current mA 15
PIN Input Power dBm 0
PT Total Power Dissipation2 mW 280
TOP Operating Temperature °C -40 to +85
TSTG Storage Temperature °C -55 to +150
Notes:
1. Operation in excess of any one of these parameters may result in permanent damage.
2. Mounted on a 50 x 50 x 1.6 mm epoxy glass PWB (TA = 85°C).


Description

The UPC2747T is a Silicon Monolithic integrated circuit which is manufactured using the NESAT III process. The NESAT III process produces transistors with fT approaching 20 GHz. This amplifier was designed for 900 MHz receivers in cellular and cordless telephone applications. Operating on a 3 volt supply (1.8 volt minimum) this IC is ideally suited for handheld, portable designs.

NEC's stringent quality assurance and test procedures ensure the highest reliability and performance.
