Product Details

Description

Features:

• WIDE FREQUENCY RESPONSE: 1500 MHz
• LOW VOLTAGE OPERATION: 3 V NOMINAL (1.8 MIN)
• LOW POWER CONSUMPTION: 22.5 mW TYP
• SUPER SMALL PACKAGE
• TAPE AND REEL PACKAGING OPTION AVAILABLE

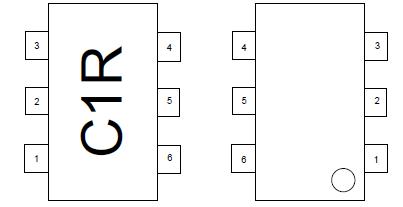

Pinout

Connection Diagram

Specifications

SYMBOLS	PARAMETERS	UNITS	RATINGS
V_CC	Supply Voltage	V	4.0
P_IN	Input Power	dBm	6
P_T	Total Power Dissipation²	mW	280
T_OP	Operating Temperature	°C	-40 to +85
T_STG	Storage Temperature	°C	-55 to +150

Notes:
1. Operation in excess of any one of these parameters may result in permanent damage.
2. Mounted on a 50 x 50 x 1.6 mm epoxy glass PWB (T_A = 85°C).

Description

The UPC2746T is a Silicon Monolithic integrated circuit which is manufactured using the NESAT III process. The NESAT III process produces transistors with fT approaching 20 GHz. This device is suitable as a buffer amplifier for cellular and cordless telephone applications. Operating on a 3 volt supply (1.8 volt minimum) this IC is ideally suited for hand-held, portable designs.

NEC's stringent quality assurance and test procedures ensure the highest reliability and performance.
