Product Details

Description

Features:

• UHF AND VHF DOWNCONVERTERS ON A SINGLE IC
• HIGH CONVERSION GAIN: 31 dB (UPC2744GS) 23 dB (UPC2743GS)
• LOW DISTORTION: UPC2743GS
• TYPICAL SATURATED OUTPUT POWER: +13 dBm
• 9 V SINGLE SUPPLY
• SMALL PACKAGE: 20 PIN SOP Suitable for Surface Mount
• TAPE AND REEL PACKAGING OPTION AVAILABLE

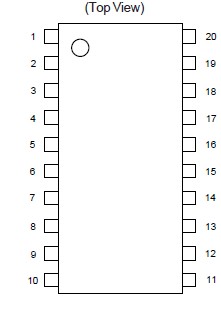

Pinout

Connection Diagram

Specifications

SYMBOLS	PARAMETERS	UNITS	RATINGS
V_CC P_T T_OP T_STG	Supply Voltage Total Power Dissipation² Operating Temperature Storage Temperature	V mW °C °C	11.0 750 -20 to +75 -55 to +150

Notes:
1. Operation in excess of any one of these parameters may result in permanent damage.
2. Mounted on a 50 x 50 x 1.6 mm epoxy glass PWB (T_A= +75°C).

Description

The UPC2743GS and UPC2744GS are Silicon Monolithic Integrated Circuits designed using the NESAT II MMIC process. These products consist of UHF and VHF double balanced mixers and local oscillators, an IF amplifier, an oscillator output buffer amplifier and a UHF/VHF switching circuit. These devices are ideal for TV and VCR tuners.

NEC's stringent quality assurance and test procedures ensure the highest reliability and performance.
