Product Details

Description

Features:

` Wide frequency response f_u = 1.1 GHzTYP @ 3 dB GPMAX.
` Maximum power gain G_PMAX. = 13 dB_TYP
` Single supply voltage: 5 V, 15 mA TYP.
` AGC Dynamic range: GCR = 38 dB TYP. @ f = 500 MHz
` Packaged in 6 pins mini mold suitable for high-density surface mounting.

Pinout

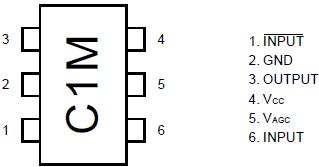

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATING	UNIT	CONDITION
Supply Voltage	V_CC	6.0	V	T_A = +25
AGC Control Voltage	V_AGC	6.0	mA	T_A = +25
Total Power Dissipation	P_D	280	mW	Mounted on double sided copper50501.6 mm epoxy glass PWB (T_A = +85 )
Operating Temperature	T_opt	40 to +85
Storage Temperature	T_stg	55 to +150
Input Power	Pin	0	dBm	T_A = +25

Description

The UPC2723T is a silicon monolithic integrated circuit designed for miniature AGC amplifier. This amplifier realizes Auto gain control with external control circuit. This IC operates up to 1.1 GHz and therefore is suitable for DBS tuner, mobile telephone and other applications.

The UPC2723T is manufactured using NEC's 20 GHz fT NESAT™ III silicon bipolar process. This process uses silicon nitride passivation film and gold metallization wirings. These materials can protect the chips from external pollution and prevent corrosion/migration. Thus, this IC has excellent performance, uniformity and reliability.
