ULN200XA

Features: · Seven darlingtons per package· Output current 500mA per driver (600mA peak)· Output voltage 50V· Integrated suppression diodes for inductive loads· Outputs can be paralleled for higher current· TTL/CMOS/PMOS/DTL Compatible inputs· Inputs pinned opposite outputs to simplify layoutPinout...

product image

ULN200XA Picture
See larger image
SeekIC No. : 004537049 Detail

ULN200XA: Features: · Seven darlingtons per package· Output current 500mA per driver (600mA peak)· Output voltage 50V· Integrated suppression diodes for inductive loads· Outputs can be paralleled for higher c...

ULN200XA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ULN200XA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Seven darlingtons per package
· Output current 500mA per driver (600mA peak)
· Output voltage 50V
· Integrated suppression diodes for inductive loads
· Outputs can be paralleled for higher current
· TTL/CMOS/PMOS/DTL Compatible inputs
· Inputs pinned opposite outputs to simplify layout

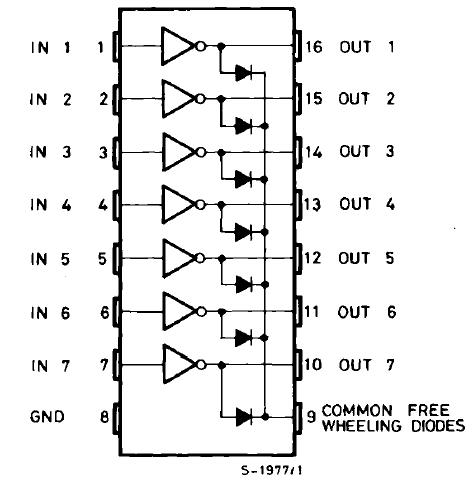

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VO

VI

IC

IB

TA

TSTG

TJ
 Output voltage

Input voltage (for ULN2002A/D - 2003A/D - 2004A/D)

Continuous collector current

Continuous base current

Operating ambient temperature range

Storage temperature range

Junction temperature
50

30

500

25

- 20 to 85

- 55 to 150

150
V

V

mA

mA

°C

°C

°C



Description

The ULN2001, ULN2002, ULN2003 and ULN 2004 are high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.

These versatile devices ULN2001, ULN2002, ULN2003 and ULN 2004 are useful for driving a wide range of loads including solenoids, relays DC motors, LED displays filament lamps, thermal printheads and high power buffers.

The ULN2001A/2002A/2003A and 2004A are supplied in 16 pin plastic DIP packages with a copper leadframe to reduce thermal resistance. They are available also in small outline package (SO-16) as ULN2001D1/2002D1/2003D1/2004D1.
