UDN2981A

Series: -
Type: High Side
Input Type: Non-Inverting
On-State Resistance: -
Mounting Type: Through Hole
Packaging: Tube
Current - Peak Output: 500mA
Number of Outputs: 8
Package / Case: 18-DIP (0.300", 7.62mm)
Supplier Device Package: 18-DIP
Manufacturer: Allegro Microsystems Inc
Operating Temperature: -20°C ~ 85°C
Current - Output / Channel: 120mA
Voltage - Supply: 25V


Features:

TTL, DTL, PMOS, or CMOS Compatible Inputs
500 mA Output Source Current Capability
Transient-Protected Outputs
Output Breakdown Voltage to 50 V
DIP or SOIC Packaging

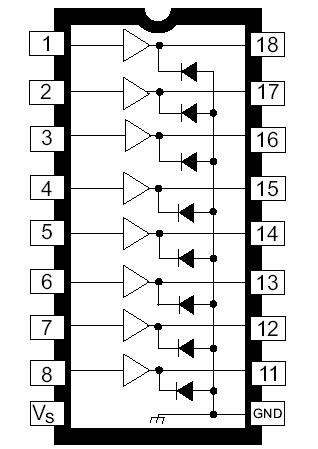

Pinout




Specifications

Output Voltage Range, V_CE . . . . .  5 V to 50 V
Input Voltage, V_IN
UDN2981A. . . . . . . . . . . . . . . . . . . . . . .  15 V
UDN2982A, UDN2982LW, and,
A2982SLW . . . . . . . . . . . . . . . . . . . . . . . 20 V
Output Current, IOUT . . . . . . . . . . . . -500 mA
Package Power Dissipation,
P_D . . . . . . . . . . . . . . . . . . . . . . .  . .See Graph
Operating Temperature Range,
T_A . . . . . . . . . . . . . . . . . . . . -20°C to +85°C
Storage Temperature Range,
T_S . . . . . . . . . . . . . . . . . . . -55°C to +150°C


Description

Recommended for high-side switching applications that benefit from separate logic and load grounds, these devices encompass load supply voltages to 50 V and output currents to -500 mA. These 8-channel source drivers are useful for interfacing between low-level logic and high-current loads. Typical loads include relays, solenoids, lamps, stepper and/or servo motors, print hammers, and LEDs.

All devices may be used with 5 V logic systems - TTL, Schottky TTL, DTL, and 5 V CMOS. The UDN2981A, UDN2982A, and A2982SLW are electrically interchangeable, will withstand a maximum output off voltage of 50 V, and operate to a minimum of 5 V. All devices in this series integrate input current limiting resistors and output transient suppression diodes, and are activated by an active high input.

The suffix 'A' (all devices) indicates an 18-lead plastic dual in-line package with copper lead frame for optimum power dissipation. Under normal operating conditions, these devices will sustain 120 mA continuously for each of the eight outputs at an ambient temperature of +50°C and a supply of 15 V.

The suffix 'LW' (UDN2982LW only) indicates an 18-lead surfacemountable wide-body SOIC package; the A2982SLW is provided in a 20-lead wide-body SOIC package with improved thermal characteristics.

The UDN2982A, UDN2982LW, and A2982SLW drivers are also available for operation over an extended temperature range to -40°C. To order, change the prefix 'UDN' to 'UDQ' or the suffix 'SLW' to 'ELW'. These packages are available in Pb (lead) free variants (suffix '-T'), with 100% matte-tin leadframe plating.
