UDN2916A

Features: ·ABLE TO DRIVE BOTH WINDINGS OF BIPOLARSTEPPERMOTOR·OUTPUT CURRENT UP TO 750mA EACH WINDING·WIDE VOLTAGE RANGE 10V TO 50V·HALF-STEP, FULL-STEP AND MICROSTEPPINGMODE·BUILT-IN PROTECTION DIODES·INTERNAL PWMCURRENT CONTROL·LOW OUTPUT SATURATION VOLTAGE·DESIGNED FOR UNSTABILIZED MOTOR SUPPLY...

product image

UDN2916A Picture
See larger image
SeekIC No. : 004536276 Detail

UDN2916A: Features: ·ABLE TO DRIVE BOTH WINDINGS OF BIPOLARSTEPPERMOTOR·OUTPUT CURRENT UP TO 750mA EACH WINDING·WIDE VOLTAGE RANGE 10V TO 50V·HALF-STEP, FULL-STEP AND MICROSTEPPINGMODE·BUILT-IN PROTECTION DIO...

UDN2916A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UDN2916A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·ABLE TO DRIVE BOTH WINDINGS OF BIPOLARSTEPPERMOTOR
·OUTPUT CURRENT UP TO 750mA EACH WINDING
·WIDE VOLTAGE RANGE 10V TO 50V
·HALF-STEP, FULL-STEP AND MICROSTEPPINGMODE
·BUILT-IN PROTECTION DIODES
·INTERNAL PWMCURRENT CONTROL
·LOW OUTPUT SATURATION VOLTAGE
·DESIGNED FOR UNSTABILIZED MOTOR SUPPLY VOLTAGE
·INTERNAL THERMAL SHUTDOWN


Pinout

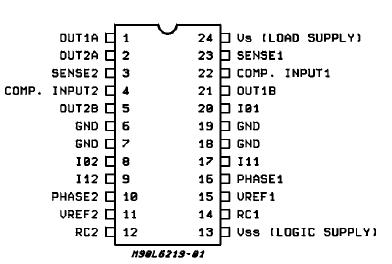

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VS Supply Voltage
50
V
IO Output Current (peak)
±1
A
IO Output Current (continuous)
±0.75
A
VSS Logic Supply Voltage
7
V
VIN Logic Input Voltage Range
-0.3 to +7
V
Vsense Sense Output Voltage
1.5
V
TJ Junction Temperature
+150
Top Operating Temperature Range
0 to 70
Tstg Storage Temperature Range
-55 to +150



Description

The UDN2916A is a bipolar monolithic integrated circuits intended to control and drive both winding of a bipolar stepper motor or bidirectionally control two DC motors.

The UDN2916A with a few external components form a complete control and drive circuit for LSTTL or microprocessor controlled stepper motor  system.

The power stage is a dual full bridge capable of sustaining 50V and including four diodes for current recirculation.

A cross conduction protection is provided to avoid simultaneous cross conduction during switching current direction.

An internal pulse-width-modulation (PWM) controls the output current to 750mA with peak startup current up to 1A.

Wide range of current control from 750mA (each bridge) is permitted by means of two logic inputs and an external voltage reference. A phase input to each bridge determines the load current direction.

A thermal protection circuitry disables the outputs if the chip temperature exceeds safe operating limits.
