Features:

· 1-V Input Voltage Operation Start-Up
  Ensured Under Full Load on Main Output,
  and Operation Down to 0.5 V
· 200-mW Output Power at Battery Voltages as Low as 0.8 V
· Secondary 7-V Supply from a Single Inductor
· Output Fully Disconnected in Shutdown
· Adaptive Current Mode Control for Optimum Efficiency
· High Efficiency Over Wide Operating Range
· 6- A Shutdown Supply Current
· Output Reset Function with Programmable Reset Period


Pinout

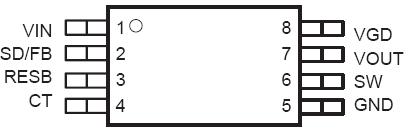

Connection Diagram


Specifications

Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 10 V
Input Voltage, SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to VIN
Input Voltage, VGD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to 14 V
Input Voltage, SW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Output Voltage, VOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 10 V
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
‡ Currents are positive into, negative out of the specific terminal. Consult Packaging Section of the Portable Products Data Book (TI Literature
Number SLUD001) for thermal limitations and considerations of packages.


Description

The UCCx9411 family of low-input voltage, single-inductor-boost converters is optimized to operate from a single or dual alkaline cell, and steps up to a 3.3-V, 5-V, or adjustable output at 200 mW. The UCCx9411 family also provides an auxiliary 7-V output, primarily for the gate-drive supply, which can be used for applications requiring an auxiliary output, such as 5 V, by linear regulating. The primary output starts up under full load at input voltages typically as low as 0.8 V with a ensured max of 1 V, and operates down to 0.5 V once the converter is operating, thereby maximizing battery usage.
