UCC2915

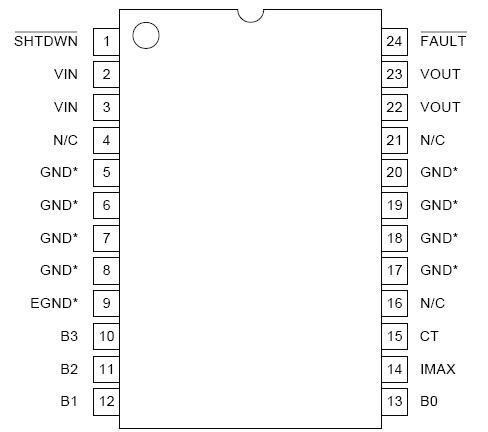

The UCC3915 Programmable Hot Swap Power Manager provides completepower management, hot swap capability, and circuit breaker functions. The only external component required to operate the device, other than power supply bypassing, is the fault timing capacitor, CT. All control and housekeeping functions are integrated, and externally programmable. These include the fault current level, maximum output sourcing current, maximum fault time, and startup delay. In the event of a constant fault, the Internal fixed 2% duty cycle ratio limits average output power.
 The UCC3915 internal 4 bit DAC allows programming of the fault level current from 0 to 3A with 0.25A resolution. The IMAX control pin sets the maximum sourcing current to 1A above the trip level or to a full 4A of output current for fast output capacitor charging.

When the UCC3915 output current is below the fault level, the output MOSFET is switched ON with a nominal ON resistance of 0.15 . When the output current exceeds the fault level, but is less than the maximum sourcing level, the output remains switched ON, but the fault timer starts, charging CT. Once CT charges to a preset threshold, the switch is turned OFF, and remains OFF for 50 times the programmed fault time. When the output current reaches the maximum sourcing level, the MOSFET transitions from a switch to a constant current source.
