UCB1200

Features: · 48 pin LQFP (SOT313) small body SMD package and low external component count results in minimal PCB space requirement· 12-bit sigma delta audio codec with programmable sample rate, input and output voltage levels, capable of connecting directly to speaker and microphone, including digi...

product image

UCB1200 Picture
See larger image
SeekIC No. : 004535741 Detail

UCB1200: Features: · 48 pin LQFP (SOT313) small body SMD package and low external component count results in minimal PCB space requirement· 12-bit sigma delta audio codec with programmable sample rate, input...

UCB1200 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UCB1200
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 48 pin LQFP (SOT313) small body SMD package and low external component count results in minimal PCB space requirement
· 12-bit sigma delta audio codec with programmable sample rate, input and output voltage levels, capable of connecting directly to speaker and microphone, including digitally controlled mute, loopback and clip detection functions
· 14-bit sigma delta telecom codec with programmable sample rate, including digitally controlled input voltage evel,mute, loopback and clip detection functions. The telecom codec can be directly connected to a Data Access Arrangement (DAA) and includes a built in sidetone suppression circuit
· Complete 4 wire resistive touch screen interface circuit supporting position, pressure and plate resistance measurements
· 10-bit successive approximation ADC with internal track and hold circuit and analog multiplexer for touch screen read-out and monitoring of four external high voltage (7.5V) analog voltages
· High speed, 4 wire serial interface data bus (SIB) for communication to the system controller
· 3.3V supply voltage and built in power saving modes make the 9397 750 04055 optimal for portable and battery powered applications
· Maximum operating current 25 mA
· 10 general purpose IO pins


Application

· Handheld Personal Computers, Personal Intelligent Communicators, Personal Digital Assistants
· Smart Mobile Phones
· Screen/Web Phones
· Internet Access Terminal
· Modems

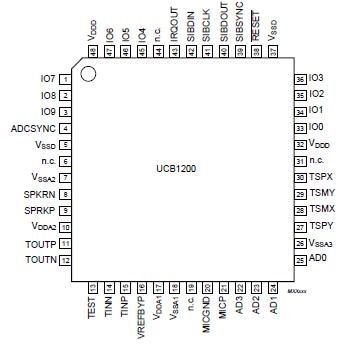

Pinout

Connection Diagram


Specifications

Symbol Parameter
Min
Max
Unit
VDD supply voltage
-0.5
+5.0
V
VI DC input voltage (except inputs AD0 - AD3)
-0.5
VDD + 0.5
V
VI DC input voltage AD0 - AD3
-0.5
8.5
V
VO DC output voltage
-
VDD + 0.5
V
II(d) diode input current
-
10
mA
IO(d) diode output current
-
10
mA
IO Continuous output current, digital outputs
4
mA
Tstg storage temperature
-55
+15


Notes
1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any conditions other than those described in the Absolute Maximum Rating section of this specification is not implied.
2. Parameters are valid over the ambient operating temperature unless otherwise specified. All voltages are with espect to VSSD (pin 37), unless otherwise noted.



Description

The UCB1200 is a single chip, integrated mixed signal audio and telecom codec. The single channel audio codec is designed for direct connection of a microphone and a speaker. The built-in telecom codec can directly be connected to a DAA and supports high speed modem protocols. The incorporated analog to digital converter and the touch screen interface provides complete control and read-out of an 4 wire resistive touch screen. The 10 general purpose I/O pins provide programmable inputs and/or outputs to the system.

The UCB1200 has a serial interface bus (SIB) intended to communicate to the system controller. Both the codec input
data and codec output data and the control register data are multiplexed on this SIB interface.
