Product Details

Description



Features:

· Dual Matched Current Sources
· High-gain Differential Sensing Circuit
· Wide Common-mode Input Capability
· Complementary Digital Open-collector Outputs
· Externally Programmable Time Delay
· Optional Output Latch with Reset
· Built-in Diagnostic Activation
· Wide Supply Voltage Range
· High Current Heater Power Source Driver


Pinout

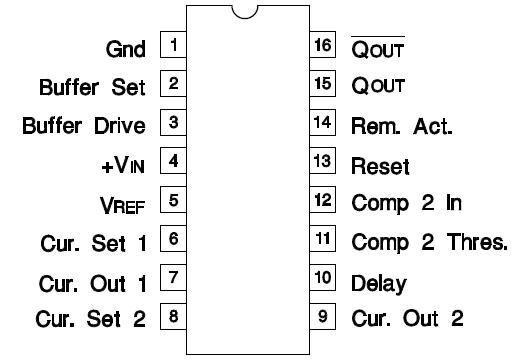

Connection Diagram


Specifications

Supply Voltage (+VIN). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40V
Output Current (each output) . . . . . . . . . . . . . . . . . . . . . .50 mA
Buffer Power Source Current . . . . . . . . . . . . . . . . . . . . .  200mA
Comparator 1 Inputs. . . . . . . . . . . . . . . . . . . . . . . -0.5V to VREF
Comparator 2 Inputs. . . . . . . . . . . . . . . . . . . . . . . . . .  0 to 5.5V
Remote Activation and Reset Inputs . . . . . . . . . . . . . . 0 to 5.5V
Power Dissipation at TA = 25°C . . . . . . . . . . . . . . . . . . 1000mW
Operating Junction Temperature . . . . . . . . . . . -55°C to +150°C
Storage Temperature Range . . . . . . . . . . . . . . -65°C to +150°C
Lead Temperature (Soldering, 10 Seconds) . . . . . . . . .  +300°C
Note: Unless otherwise specified, all voltages are with respect
to ground (Pin 1).
Currents are positive into, negative out of the specified
terminal.
Consult Packaging section of Databook for thermal
imitations and considerations of package.


Description

This integrated circuit contains a complete signal conditioning system to interface low-level variable impedance transducers to a digital system. A pair of matched, temperature-compensated current sources are provided for balanced transducer excitation followed by a precision, high-gain comparator. The output of this comparator can be delayed by a user-selectable duration, after which a second comparator will switch complementary outputs separately activated for diagnostic operation and has an optional latch with external reset capability. An added feature is a high current power source useful as a heater driver in differential temperature sensing applications. The UC3704 is designed for 0°C to +70°C environments.
