UC2965

Features: • Accessible 2.5V Precision Reference• 0.4% Initial Reference Accuracy• 1% Reference Accuracy over Line, Load, and Full Temperature Range• Low 1mV Offset Error Amplifier• Supports Closed Loop Soft Start• 2X Inverting Amplifier / Buffer Output• 4....

product image

UC2965 Picture
See larger image
SeekIC No. : 004535536 Detail

UC2965: Features: • Accessible 2.5V Precision Reference• 0.4% Initial Reference Accuracy• 1% Reference Accuracy over Line, Load, and Full Temperature Range• Low 1mV Offset Error Ampl...

UC2965 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UC2965
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Accessible 2.5V Precision Reference
• 0.4% Initial Reference Accuracy
• 1% Reference Accuracy over Line,
  Load, and Full Temperature Range
• Low 1mV Offset Error Amplifier
• Supports Closed Loop Soft Start
• 2X Inverting Amplifier / Buffer Output
• 4.1V Undervoltage Lockout
• ICC 2mA at 5V
• 8-Pin SOIC or DIL Package


Pinout

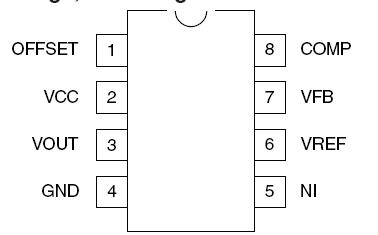

Connection Diagram


Specifications

VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to 20V
VREF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to 6V
VFB, COMP, NI, VOUT. . . . . . . . . . . . . . . . . . . . . . . 0.3V TO 6V
Storage Temperature . . . . . . . . . . . . . . . . . . −65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . . . . . 55°C to +150°C
Lead Temperature (Soldering, 10 sec.) . . . . . . . . . . . . . +300°C
Currents are positive into, negative out of the specified terminal.
All voltages are with respect to ground. Consult Packaging Section
of Databook for thermal limitations and considerations of
packages.


Description

The UC3965 is suitable for applications needing greater precision and more functionality than the TL431 type shunt regulators. The wide range VCC input capability enables the device to be biased from the secondary side output voltage rail, resulting in closed loop soft start.

The UC3965 includes an accessible 2.5V precision reference which offers 0.4% initial and 1% reference accuracy over line, load, and full temperature range with a low offset error amplifier, a 2X inverting amplifier/buffer, and an undervoltage lockout circuit. The IC is ideally suited for applications where high precision PWM power supply regulation is required. Typically, the error amplifier is configured to compare a fraction of the to be regulated power supply voltage to the on-chip 2.5V reference. The 2X amplifier/buffer output is then used to drive a PWM controller or regulator. The UC3965 is also capable of driving an optocoupler diode for isolated applications.
