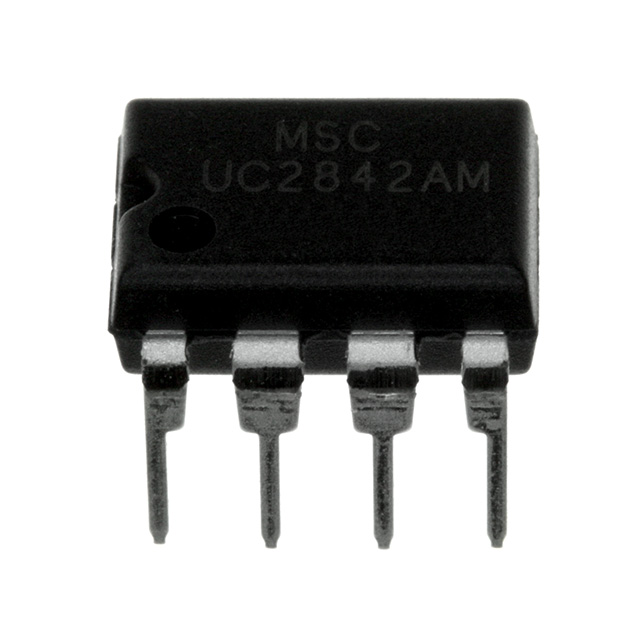

UC2842AN

Operating Supply Voltage :
Operating Supply Current :
Number of Outputs : 1
Mounting Style : Through Hole
Switching Frequency : 500 KHz
Maximum Operating Temperature : + 85 C
Rise Time : 50 ns
Duty Cycle (Max) : 100 %
Fall Time : 50 ns
Package / Case : PDIP-8


Description

The UC2842AN is one member of the UC2842 family which is designed as the currentmodE PWM controller that providesthe necessary features to implement off-line or DC to DC fixed frequency current mode controlschemes with a minimal externalparts count.

Features of the UC2842AN are:(1)optimized for off-line and DC to DC converters low start-up current (< 1 mA) automatic feed forward compensation; (2)pulse-by-pulsecurrent limiting ; (3)enhanced load response characteristics ; (4)under-voltage lockout with hysteresis; (5)double pulse suppression; (6)high current totempoleoutput ; (7)internally trimmed bandgap reference; (8)500 KHz operation ; (9)low RO ERRORAMP.

The absolute maximum ratings of the UC2842AN can be summarized as:(1)supply voltage (low impedance source):30 V;(2)supply voltage (Ii < 30mA):self limiting;(3)output current:±1 A;(4)output energy (capacitive load):5 J;(5)analog inputs (pins 2, 3):-0.3 to 6.3 V;(6)error amplifier output sink current:10 mA;(7)power dissipation at Tamb 3 50 °C (minidip, DIP-14): 1 W;(8)power dissipation at Tamb 3 25 °C (SO14):725 mW;(9)storage temperature range:-65 to 150 °C;(10)lead temperature (soldering 10s):300 °C. If you want to know more information such as the electrical characteristics about the UC2842AN, please download the datasheet in www.seekic.com or www.chinaicmart.com .

Parameters:

Technical/Catalog Information	UC2842AN
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
PWM Type	Current Mode
Number of Outputs	1
Package / Case	8-DIP (300 mil)
Packaging	Tube
Duty Cycle	100%
Voltage - Supply	16 V ~ 30 V
Frequency-Max	450kHz
Buck	No
Boost	Yes
Flyback	Yes
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	No
Drawing Number	296; 4040082; P; 8
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	UC2842AN UC2842AN 296 11175 5 ND 296111755ND 296-11175-5
