Product Details

Description



Features:

· Full bridge driver circuit
· Integrated bootstrap diodes
· Integrated high voltage level shift function
· High voltage input for the internal supply voltage
· 550 V maximum voltage
· Bridge disable function
· Input for start-up delay
· Adjustable oscillator frequency
· Predefined bridge position during start-up.


Application

· The UBA2033 can drive (via the MOSFETs) any kind of load in a full bridge configuration
· The circuit is especially designed as a commutator for High Intensity Discharge (HID) lamps.

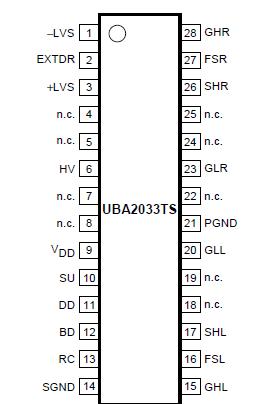

Pinout

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VDD supply voltage (high voltage) DC value
0
14
V
transient at t < 0.1 s
0
17
V
VHV supply voltage (high voltage)
0
550
V
VFSL floating supply voltage left VSHL = VSHR = 550 V
0
564
V
VSHL = VSHR = 0 V
0
14
V
VFSR floating supply voltage right VSHL = VSHR = 550 V
0
564
V
VSHL = VSHR = 0 V
0
14
V
VSHL source voltage for higher left MOSFETs with respect to PGND and SGND
-3
+550
V
with respect to SGND; t < 1 s
-14
-
V
VSHR source voltage for higher right MOSFETs with respect to PGND and SGND
-3
+550
V
with respect to SGND; t < 1 s
-14
-
V
VPGND power ground voltage with respect to SGND
0
5
V
V-LVS negative supply voltage for logic input
-0.9
+17
V
I-LVS negative supply current for logic input pin EXTDR = HIGH
-1
-
mA
V+LVS positive supply voltage for logic input VHV = 0 V; DC value
0
14
V
transient at t < 0.1 s
0
17
V
Vi(EXTDR) input voltage from external oscillator
on pin EXTDR		 with respect to V-LVS
0
V+LVS
V
Vi(RC) input voltage on pin RC DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
Vi(SU) input voltage on pin SU DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
Vi(BD) input voltage on pin BD DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
Vi(DD) input voltage on pin DD DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
SR slew rate at output pins repetitive
0
4
V/ns
Tj junction temperature
-40
+150
Tamb ambient temperature
-40
+150
Tstg storage temperature
-55
+150
Vesd electrostatic discharge voltage on
pins HV, +LVS, -LVS, EXTDR, FSL,
GHL, SHL, SHR, GHR and FSR		 note 1
-
900
V
Note
1. In accordance with the Human Body Model (HBM): equivalent to discharging a 100 pF capacitor through a 1.5 k
series resistor.


Description

The UBA2033 is a high voltage monolithic integrated circuit made in the EZ-HV SOI process. The circuit is designed for driving the MOSFETs in a full bridge configuration. In addition, it features a disable function, an internal adjustable oscillator and an external drive function with a low-voltage level shifter for driving the bridge.

To guarantee an accurate 50% duty factor, the oscillator signal can be passed through a divider before being fed to the output driver.
