UBA2032

Features: ` Full bridge driver circuit` Integrated bootstrap diodes` Integrated high voltage level shift function` High voltage input for the internal supply voltage` 550 V maximum bridge voltage` Bridge disa'ble function` Input for start-up delay` Adjustable oscillator frequency` Predefined bridg...

product image

UBA2032 Picture
See larger image
SeekIC No. : 004535291 Detail

UBA2032: Features: ` Full bridge driver circuit` Integrated bootstrap diodes` Integrated high voltage level shift function` High voltage input for the internal supply voltage` 550 V maximum bridge voltage` B...

UBA2032 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UBA2032
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Full bridge driver circuit
` Integrated bootstrap diodes
` Integrated high voltage level shift function
` High voltage input for the internal supply voltage
` 550 V maximum bridge voltage
` Bridge disa'ble function
` Input for start-up delay
` Adjustable oscillator frequency
` Predefined bridge position during start-up
` Adaptive non-overlap.


Application

· The UBA2032 can drive (via the MOSFETs) any kind of load in a full bridge configuration
· The circuit is especially designed as a commutator for High Intensity Discharge (HID) lamps.


Pinout

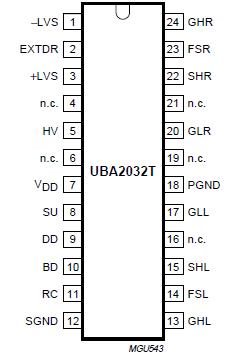

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VDD supply voltage (high voltage DC value
0
14
V
transient at t < 0.1 s
0
17
V
VHV supply voltage (high voltage
0
550
V
VFSL floating supply voltage left VSHL = VSHR = 550 V
0
564
V
VSHL = VSHR = 0 V
0
14
V
VFSR floating supply voltage right VSHL = VSHR = 550 V
0
564
V
VSHL = VSHR = 0 V
0
14
V
VSHL source voltage for higher left MOSFETs with respect to PGND and SGND
-3
+550
V
with respect to SGND; t < 1 s
-14
-
V
VSHR source voltage for higher right MOSFETs with respect to PGND and SGND
-3
+550
V
with respect to SGND; t < 1 s
-14
-
V
VPGND power ground voltage with respect to SGND
0
5
V
V-LVS negative supply voltage for logic input t < 1 s
0
464
V
V+LVS positive supply voltage for logic input VHV = 450 V; t < 1 s
0
464
V
VHV = 0 V; DC value
0
14
V
VHV = 0 V; transient at t < 0.1 s
0
17
V
Vi(EXTDR) input voltage from external oscillator
on pin EXTDR		 with respect to V-LVS
0
V+LVS
V
Vi(RC) input voltage on pin RC DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
Vi(SU) input voltage on pin SU DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
Vi(BD) input voltage on pin BD DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
Vi(DD) input voltage on pin DD DC value
0
VDD
V
transient at t < 0.1 s
0
17
V
SR slew rate at output pins repetitive
0
4
V/ns
Tj junction temperature
-40
+150
Tamb ambient temperature
-40
+150
Tstg storage temperature
-55
+150
Vesd electrostatic discharge voltage on
pins HV, +LVS, -LVS, EXTDR, FSL,
GHL, SHL, SHR, GHR and FSR		 note 1
-
900
V
Note
1. In accordance with the Human Body Model (HBM): equivalent to discharging a 100 pF capacitor through a 1.5 k
series resistor


Description

The UBA2032 is a high voltage monolithic integrated circuit made in the EZ-HV SOI process. The circuit is designed for driving the MOSFETs in a full bridge configuration. In addition, it features a disable function, an internal adjustable oscillator and an external drive function with a high-voltage level shifter for driving the bridge.

To guarantee an accurate 50% duty factor, the oscillator signal can be passed through a divider before being fed to the output drivers.
