Product Details

Description

Features:

` Full bridge driver
` Integrated bootstrap diodes
` Integrated high voltage level shift function
` High voltage input (570 V maximum) for the internal supply
` Adjustable 'dead time'
` Adjustable oscillator frequency
` High voltage level shifter for the bridge enable function
` Shut-down function.

Application

· The UBA2030T can drive the MOSFETs in any type of load configured as a full bridge
· The circuit is intended as a commutator for High Intensity Discharge (HID) lamps.

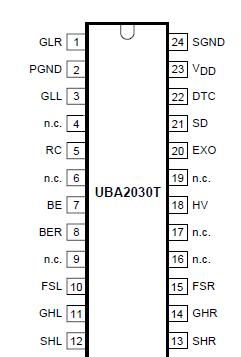

Pinout

Connection Diagram

Description

The UBA2030T is a high voltage integrated circuit fabricated using the BCD750 power logic process.The circuit is designed for driving the MOSFETs in a full bridge configuration. In addition, it features a shut-down function, an adjustable oscillator and a PMOS high voltage level shifter to control the bridge enable function.

To guarantee an accurate 50% duty factor, the oscillator signal passes through a divider before being fed to the output drivers.
