Position: Home  > All Categories> Integrated Circuits (ICs) > UB1106W

UB1106W

Features: ・Outer Dimension 2.5 x 2.0 x 1.3mm ( L x W x H )・Temperature rangeStorage Temperature : -40~120Operating Temperature : -40~100・Leadfree soldering compatible・RoHS compliantSpecifications Item Symbol Absolute Max imum Ratings Unit UB UG UR Power ...

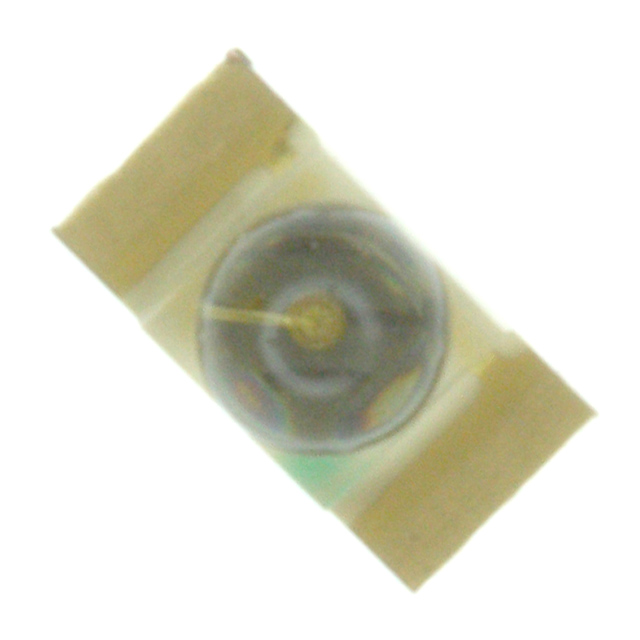

product image

UB1106W Picture
See larger image
SeekIC No. : 004535237 Detail

UB1106W: Features: ・Outer Dimension 2.5 x 2.0 x 1.3mm ( L x W x H )・Temperature rangeStorage Temperature : -40~120Operating Temperature : -40~100・Leadfree soldering compatible・RoH...

UB1106W Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UB1106W
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

・Outer Dimension 2.5 x 2.0 x 1.3mm ( L x W x H )
・Temperature range
  Storage Temperature : -40~120
  Operating Temperature : -40~100
・Leadfree soldering compatible
・RoHS compliant


Specifications

Item Symbol Absolute Max imum Ratings Unit
UB UG UR
Power Dissipation Pd 84 84 87 mW
Forward Current IF 20 20 30 mA
Pulse Forward Current 1 IFRM 100 100 100 mA
Derating (Ta=60 or higher) IF 0.45 0.45 1.002 mA/
IFRM 2.22 2.22 3.332 mA/
Reverse Voltage VR 5 5 5 V
Operating Temperature Topr -40~+100
Storage Temperature Tstg -40~+120

1 IFRMMeasurement condition : Pulse Width1ms., Duty1/20.
2 Temperature Condition : Ta=85 or higher.
