Product Details

Description

Features:

· Forced load response control (LRC) with heavy load transitions at low RPM
· Voltage regulated to ± 0.1V @ 25°C
· External resistor adjustable operating frequency
· Regulation is effective with loads as high as 1.0A
· Load dump protection of lamp, field control devices, and loads
· Undervoltage, overvoltage , phase fault (broken belt) detection and duty cycle limited protections
·Pb-free plating product number: UAC3092AL

Pinout

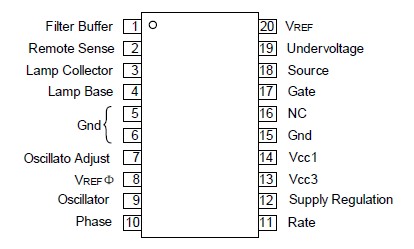

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Power Supply Voltage Load Dump Transient Voltage (Note 1) Negative Voltage (Note 2)	V_BAT +V_MAX -V_MIN	24 40 -2.5	V
Power Dissipation (Ta=125··􀄊)	P_D	867	m/W
Operating Junction Temperature	T_J	+150	··
Operating Ambient Temperature Range	T_OPR	-35 ~ +125	··
Storage Temperature Range	T_STG	-45 ~ +150	··

Note: 1. 125 ms wide square wave pulse.
2. Maximum time = 2 minutes.
3. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.

Description

The UTC UAC3092A is designed for Load Response Control and voltage regulation of diode rectified alternator charging systems for automotive applications.
