Product Details

Description



Features:

* CMOS Technology
* Low Power Consumption
* Two Voltage Output Channels in the same chip
* 16-bits Dynamic Range
* Low Total Harmonic Distortion
* 5V(typ.) Single Power Supply

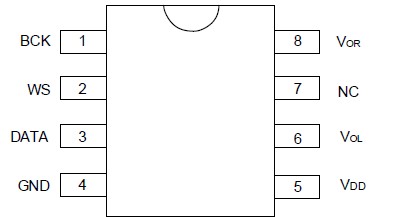

Pinout

Connection Diagram


Specifications

Power Supply Voltage VDD........... -3.0 ~ +7.0 V
Input Voltage VIN.................. -0.3 ~ VDD+0.3 V
Operating Temperature TOPR........... 0 ~ +70
Storage Temperature TSTG ..........-40 ~ +150


Description

UTC UA2311 is a 16-bits Digital-to-Analog Converter(DAC) designed for stereo audio applications and manufactured by
CMOS Technologies with low power consumption UA2311 converts the 16 bits serial data into an analog output voltage by an R-string voltage divider. Each output channel voltage is driven by an operational amplifier allowing easy analog output. In sound cards test, the 44.1KHz or higher sampling rate is available.
