U7SH02

Features:

· Operation voltage range: 2~5.5V
· Low power dissipation: I_CC=2µA(Max)
· High speed: tpd=3.8ns(Typ)
· High noise immunity
·Power down protection

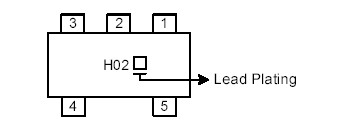

Pinout




Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	VCC	-0.5~7	V
Input Voltage	VIN	-0.5~7	V
Output Voltage	VOUT	-0.5~VCC+0.5	V
Input Clamp Current	IIK	-20	mA
Output Clamp Current	IOK	±20	mA
Output Current	IOUT	±25	mA
VCC or GND Current	ICC	±50	mA
Power Dissipation	PD	200	mW
Storage Temperature	TSTG	-65 ~ +150

Note 1. The input and output voltage ratings may be exceeded if the input and output current
             ratings are observed.
        2. Absolute maximum ratings are those values beyond which the device could be permanently
            damaged. Absolute maximum ratings are stress ratings only and functional device operation
            is not implied.



Description

The U7SH02 is a 2-input NOR gate, it provides the function Y=A+B This device has power-down protective circuit, preventing device destruction when it is powered down.
