U7004B

Features: • Single 3-V Supply Voltage• High Power-added Efficient Power Amplifier (Pout typically 26.5 dBm)• Ramp-controlled Output Power• Low-noise Preamplifier (NF typically 1.8 dB)• Biasing for External PIN Diode T/R Switch• Current-saving Standby Mode•...

product image

U7004B Picture
See larger image
SeekIC No. : 004535078 Detail

U7004B: Features: • Single 3-V Supply Voltage• High Power-added Efficient Power Amplifier (Pout typically 26.5 dBm)• Ramp-controlled Output Power• Low-noise Preamplifier (NF typicall...

U7004B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U7004B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3-V Supply Voltage
• High Power-added Efficient Power Amplifier (Pout typically 26.5 dBm)
• Ramp-controlled Output Power
• Low-noise Preamplifier (NF typically 1.8 dB)
• Biasing for External PIN Diode T/R Switch
• Current-saving Standby Mode
• Few External Components


Pinout

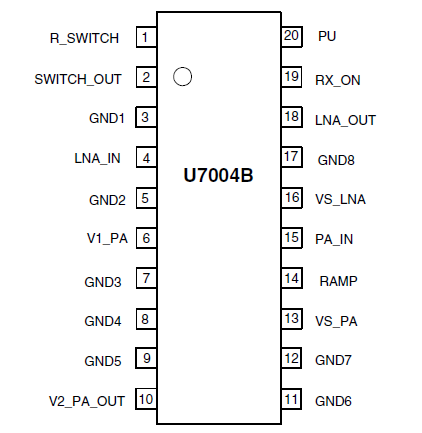

Connection Diagram


Specifications

All voltages refer to GND (pins 3, 5, 7, 8, 9, 11, 12 and 17), ESD protection according to ESD-S5.2-1994, Class M1.
Parameters
Symbol
Value
Unit
Supply voltage pins 6, 10, 13 and 16 (no RF)
VS
5
V
Duty cycle PA
50
%
Burst duration PA
5
ms
Junction temperature
Tj
150
Storage temperature
Tstg
-40to+125
Input power PA pin 15
PinPA
+10
dBm
Input power LNA pin 4
PinLNA
-5
dBm



Description

The U7004B is a monolithic SiGe transmit/receive front end IC with power amplifier,50- internal matching, low-noise amplifier and T/R switch driver. U7004B is especially designed for operation in TDMA systems like DECT. Due to the ramp-control feature and a very low quiescent current, an external switch transistor for VS is not required.
