U6820BM

Features: • Four Short-circuit-protected High-side Drivers with a Maximum Current Capability of 50 mA Each• Four Short-circuit-protected Low-side Drivers with a Maximum Current Capability of 50 mA Each• ON Resistance High Side Ron < 10 Versus Total Temperature Range• ON...

product image

U6820BM Picture
See larger image
SeekIC No. : 004535071 Detail

U6820BM: Features: • Four Short-circuit-protected High-side Drivers with a Maximum Current Capability of 50 mA Each• Four Short-circuit-protected Low-side Drivers with a Maximum Current Capabilit...

U6820BM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U6820BM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Four Short-circuit-protected High-side Drivers with a Maximum Current Capability of 50 mA Each
• Four Short-circuit-protected Low-side Drivers with a Maximum Current Capability of 50 mA Each
• ON Resistance High Side Ron < 10 Versus Total Temperature Range
• ON Resistance Low Side Ron < 7 Versus Total Temperature Range
• Short-circuit Detection of Each Driver Stage
• Disabling of Driver Stages in the Case of Short-circuit and Overtemperature Detection
• Independent Control of Each Driver Stage via an 8-bit Shift Register
• Status Output Reports Short-circuit Condition
• Status Output Reports when All Loads Are Switched Off
• Timing of Status Output Reset Signalizes Failure Mode
• Temperature Protection in Conjunction with Short-circuit Detection

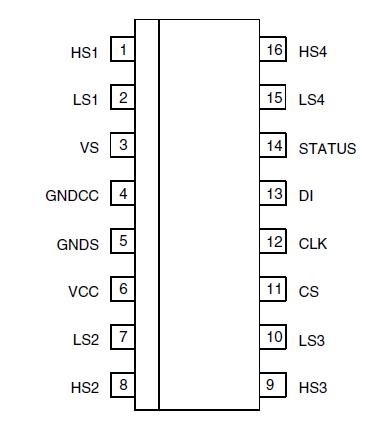

Pinout

Connection Diagram


Specifications

Parameters
Pin
Symbol
Min.
Max.
Unit
Supply voltage
3
VVS
-0.3
+40
V
Logic supply voltage
6
VVCC
-0.3
+7
V
Logic input voltage
11,12 13
CS,CLK,DI
-0.3
VVCC + 0.5
V
Logic output voltage
14
TSATUS
-0.3
VVCC + 0.3
V
Input current
3
IVS
0.2
mA
6
IVCC
5
mA
Output current
(internally limitted)
1-2,8-11,
15-16
I 1H-4H and I 1L-4
30
65
mA
Junction temperature range
Tj
-40
+150
Storage temperature range
Tstg
-55
+150



Description

The U6820BM is a driver interface in BCDMOS technology with 8 independent driver stages having a maximum current capability of 50 mA each. Its partitioning into 4 high-side and 4 low-side driver stages allows an easy connection of either 4 halfbridges or 2 H-bridges on the pc board. The U6820BM communicates with a microcontroller via an 8-bit serial interface. Integrated protection against short circuit and overtemperature give added value. EMI protection and 2-kV ESD protection together with automotive qualification referring to conducted interference (ISO/TR 7637/1) make U6820BM ideal for both automotive and industrial applications.
