U642B

Features: ` Interval pause: 4 to 20 s` Afterwiping time: 2 to 20 s` Wiper motor's park switch` Wipe/wash mode priority` One external capacitor, determines all time sequences` Relay driver with Z-diode` Interference protection according to VDE 0839 or ISO/TR 7637/1` Load-dump protectedPinoutSpecifi...

product image

U642B Picture
See larger image
SeekIC No. : 004535020 Detail

U642B: Features: ` Interval pause: 4 to 20 s` Afterwiping time: 2 to 20 s` Wiper motor's park switch` Wipe/wash mode priority` One external capacitor, determines all time sequences` Relay driver with Z-dio...

U642B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U642B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Interval pause: 4 to 20 s
` Afterwiping time: 2 to 20 s
` Wiper motor's park switch
` Wipe/wash mode priority
` One external capacitor, determines all time sequences
` Relay driver with Z-diode
` Interference protection according to VDE 0839 or ISO/TR 7637/1
` Load-dump protected


Pinout

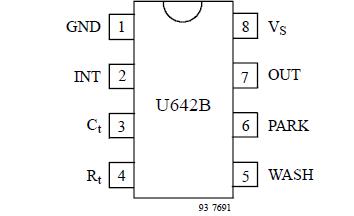

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage t = 60 s Terminal 15, Pin 8
VBatt
28
V
Supply current t = 2 ms Pin 8
t = 200 ms
I8
I8
1.5
150
A
mA
Relay control output current (DC) Pin 7
t = 200 ms
I7
I7
200
1.2
A
mA
Pulse current (control inputs) t = 200 ms


Park switch, S1 Pin 6
Wipe/Wash switch, S3 Pin 5
Interval switch, S2 Pin 2
I6
I5
I2
50
50
50
mA
Power dissipation Tamb = 90°C
Ptot
500
mW
Storage temperature range
Tstg
-55to+125
Ambient temperature range
Tamb
-40to+85



Description

As a convenience U642B feature of the windshield wiper intermittent and wipe/wash operation are implemented in most of the automobiles. The U642B is the low-cost solution for an accurate timing function control. Wipe/wash mode has priority over interval mode. Interval pause and afterwiping time can be set to fixed values by using resistors in a broad time range. Added value can be provided with an individual, continuous adjustment of the interval pause by a potentiometer which may be built into the stalk. For proper operation it is mandatory to feed the signal of the wiper motor's park switch into U642B.
