Features: • Interval Pause: 4 to 20 s• After-wiping Time: 2 to 20 s• Wiper Motor's Park Switch• 0.6 s Prewash Delay• Wipe/Wash Mode Priority• One External Capacitor Determines All Time Sequences• Relay Driver with Z-diode• Interference Protection Acc...
U641B: Features: • Interval Pause: 4 to 20 s• After-wiping Time: 2 to 20 s• Wiper Motor's Park Switch• 0.6 s Prewash Delay• Wipe/Wash Mode Priority• One External Capacit...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Parameters |
Symbol |
Value |
Unit |
Supply voltage t = 60 s Terminal 15, Pin 8 |
VBatt |
28 |
V |
Supply current t = 2 ms Pin 8 t = 200 ms |
I8 I8 |
1.5 150 |
A mA |
Relay control output current (DC) Pin 7 t = 200 ms |
I7 I7 |
200 1.2 |
A mA |
Pulse current (control inputs) t = 200 ms |
|
||
Park switch, S1 Pin 6 Wipe/Wash switch, S3 Pin 5 Interval switch, S2 Pin 2 |
I6 I5 I2 |
50 50 50 |
mA |
Power dissipation Tamb = 90°C |
Ptot |
500 |
mW |
Storage temperature range |
Tstg |
-55to+125 |
|
Ambient temperature range |
Tamb |
-40to+85 |

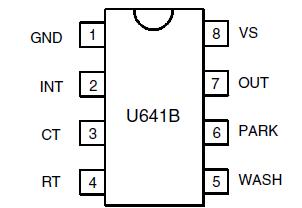

The U641B is a bi-polar integrated circuit designed for the wiper application in the automotive market. It includes wipe, wash and internal mode.
As a convenience U641B feature of the windshield wiper, intermittent and wipe/wash operation functions are implemented in most of the automobiles. The U641B is a costeffective solution for an accurate timing function control. Wipe/wash mode has priority over interval mode. Interval pause and after-wiping time can be set to fixed values by using resistors in a broad time range. Added value of U641B can be provided with an individual,continuous adjustment of the interval pause by a potentiometer which may be built into the stalk. For proper operation, it is mandatory to feed the signal of the wiper motor's park switch into the U641B.
