U63716

a: Stresses greater than those listed under „Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at condition above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

The U63716 has two separate modes of operation: SRAM mode and nonvolatile mode. In SRAM mode, the memory operates as an ordinary static RAM. In non-volatile operation, data is transferred in parallel from SRAM to EEPROM or
from EEPROM to SRAM. In this mode SRAM functions of U63716 are disabled.

The U63716 is a static RAM with a non-volatile electrically erasable PROM (EEPROM) element incorporated in each static memory cell.The SRAM can be read and written an unlimited number of times, while independent nonvolatile data resides in EEPROM. Data of U63716 transfers from the SRAM to the EEPROM (the STORE operation) take place automatically upon power down using charge stored in an integrated capacitor. Transfers from the EEPROM to the SRAM (the RECALL operation) take place automatically on power up. The U63716 combines the ease of use of an SRAM with nonvolatile data integrity.

STORE cycles of U63716 also may be initiated under user control via a software sequence.Once a STORE cycle is initiated,further input or output are disabled until the cycle of U63716 is completed.Because a sequence of addresses is used for STORE initiation, it is important that no other read or write accesses intervene in the sequence or the sequence will be
aborted.

RECALL U63716 cycles may also be initiated by a software sequence.Internally, RECALL is a two step procedure. First, the SRAM data is cleared and second, the nonvolatile information is transferred into the SRAM cells.

The RECALL U63716 operation in no way alters the data in the EEPROM cells. The nonvolatile data can be recalled an unlimited number of times.

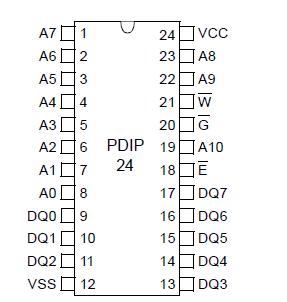

The U63716 is pin compatible with standard SRAMs and standard battery backed SRAMs.
